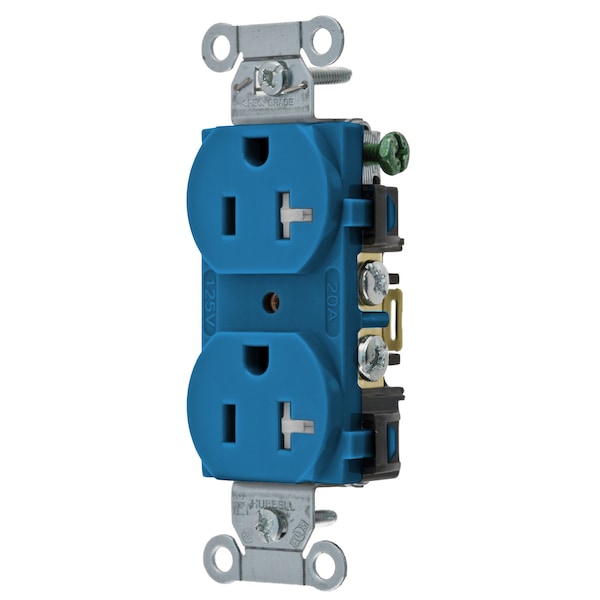

Dispositivos de cuchilla recta, receptáculos, duplex a prueba de manipulaciones, grado comercial/industrial, de 2 polos 3 cables a tierra, 20A 125V, 5-20R, azul, paquete individual.
| Material | Nylon |
|---|---|
| Height | 3.28 in |
| Width | 0.83 in |
| Color | Blue |
| Phase | Single Phase |
| Type | Tamper Resistant |
| Length | 1.32 in |
| Application | Commercial Grade |
| Power Contacts | .030 in. Brass |
| Face | Nylon |
| Ground Contacts | Brass |
| Base | Nylon |
| Dielectric Voltage | Withstands 2,000V minimum |
| Terminal Accommodation | #12-#10 AWG copper stranded or solid conductor only |
| Device Color | Blue |
| Current Interrupting | Certified for current interrupting at full rated current |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Flammability | UL 94 V-2 |
| Wire Clamp | .062 in. (1.6) Nickel plated steel |
| Automatic Self-grounding Staple | Stainless steel |
| Terminal Screws | Steel |
| Mounting Strap | .040 in. Galvanized steel |
| Mounting Screws | Galvanized Steel |
| Connectivity | Back and Side Wired |
| Nema Rating | 5-20R |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Horsepower - Maximum | 1 |
| Item Type | Traditional Duplex |
| Dimensions | 1.32 in x 0.83 in x 3.28 in |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Series | Commercial Specification Grade |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Wattage | 5000 W |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Dielectric Strength | Withstands 2,000V minimum |
| Industry Standard(s) | Certified to CSA C22.2, No. 42 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Wire Size | #12 AWG to #10 AWG |
| Voltage Rating Description | 125 V |
| Style | Smooth Face |
| Material - Mounting Hardware | Screw Mounting |
| Current Rating | 20 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Number Of Wires | 3-Wire |
| Package Quantity | 1 |
