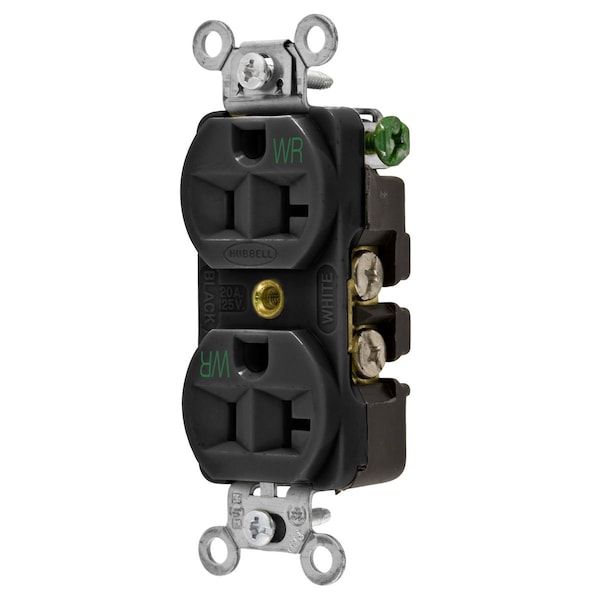

Straight Blade Devices, Weather Resistant Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black
| Phase | Single Phase |
|---|---|
| Voltage | 125 V |
| Size | Standard Sized Product |
| Width | 1.41 in |
| Wiring Method | Back, Side |
| Height | 1.09 in |
| Color | Black |
| Type | Grounding, 2-Pole 3-Wire |
| Material | Thermoplastic/Composite |
| Mounting Type | Screw Mount |
| Application | Hubbell-Pro Heavy Duty |
| Length | 3.28 in |
| Receptacle Style | Duplex |
| Power Contacts Material | .030" Brass |
| Rating | 20A, 125V |
| Mounting Screw Material | Steel-Zinc Plated |
| Auto Ground Clip Material | Stainless Steel |
| Device Color | Black |
| Product Type | Flush-receptacles |
| Terminal Accommodation | #12-#10 AWG copper stranded or solid conductor only |
| Amperage | 20 A |
| Other Available Colors | Brown, Ivory, White, Gray, Black |
| Top Material | Nylon |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Face Shape | Traditional |
| Receptacle Grade | Hubbell-Pro Series, Weather Resistant |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Horsepower | 1 |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2,000V minimum |
| Base Material | Nylon |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current |
| NEMA No. | 5 to 20 R |
| Flammability | UL 94 V2. |
| Certification | UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285. |
| Face Style | Finder Groove |
| Standard | NEMA |
| Mounting Strap Material | Steel |
| Number Of Poles | 2-Pole |
| Material - Mounting Hardware | Screw Mounting |
| Temperature Rating | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Amperage Rating | 20 A |
| Wire Size | #12 AWG to #10 AWG |
| Current Rating | 20 A |
| Style | Finder Groove Face |
| Connectivity | Back and Side Wired |
| Display Size | Standard Sized Product |
| Number Of Wires | 3-Wire |
| Wattage | 1875 W |
| Current / Amperage Rating | 20 A |
| Dimensions | 3.28 in x 1.41 in x 1.09 in |
| Horsepower - Maximum | 1 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 125 V |
| Item Type | Traditional Duplex |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | 5-20R |
| Series | Hubbell-PRO |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Environmental Conditions | Weather Resistant |
| Industry Standard(s) | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Package Quantity | 1 |
