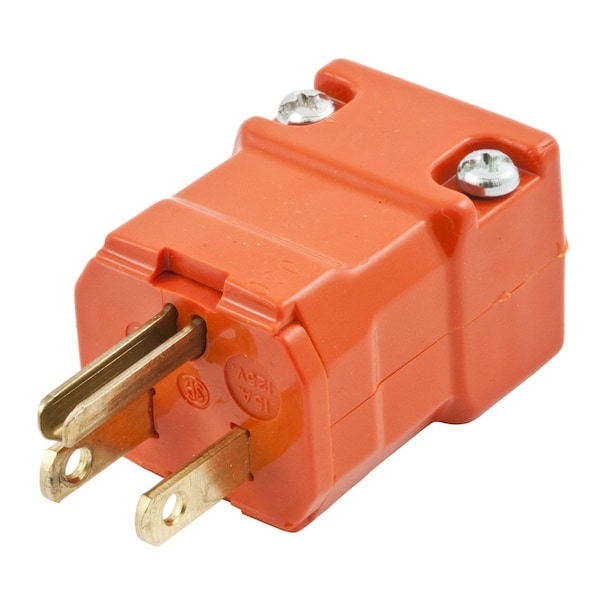

Straight Blade Male Plug, Valise Series, Industrial/Commercial, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Orange, Single Pack, Economy Ver
| Item - Plugs and Receptacles | Plug |
|---|---|
| Item | Valise |
| Wiring Style | stranded conductor |
| Grade - Plugs and Receptacles | Valise |
| Amps - Plugs and Receptacles | 15A |
| Voltage - Plugs and Receptacles | 250 VAC |
| Color | Orange |
| HP | 1/2 |
| Phase | Single Phase |
| Standards | C-73; NEMA; UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280; Terminals identified in accordance with UL498 (Brass, White, Green).; UL2305 OEM and replacement use on convention center flat cable cord sets. |
| Application | Industrial/Commercial Grade |
| Cord Size | .220"-.660" (5.6-16.8) |
| IP Rating | IP20 |
| Material | Polycarbonate |
| Special Features | Certified for current interrupting at full rated current. |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage | 15 A |
| Weight | 0.1 lb |
| Number Of Poles | 2-Pole |
| Maximum Horsepower | 0.5 |
| Brand | Hubbell Wiring Device-Kellems |
| Number Of Wires | 3-Wire |
| Dielectric Strength | Withstands 2,000V minimum |
| Mounting Hardware Material | Cord Mounted |
| Nema Rating | 5 to 15 P |
| Connectivity | Screw Terminals |
| Carton Quantity | 50 |
| Wire Size | #18 AWG to #12 AWG |
| Current Rating | 15 A |
| Voltage Rating | 125 V |
| UPC | 783585000000 |
| Environment | Dry |
| Contact Blades Material | .060" Brass |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Other Available Colors | Black, Gray, Yellow, Orange |
| Terminal Screw Material | Steel |
| Flammability | Rated HB or better UL94 |
| Blade Material | Solid Brass |
| Weight (Lbs.) | 0.1 |
| Cord Clamp Material | Noryl |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Housing Material | Nylon |
| Grounding | Grounded |
| Body Material | Impact Modified Nylon |
| Body Style | Straight |
| Ground Contact Blade Material | Brass |
| Housing Color | Orange |
| Ground Screw Material | Steel |
| Voltage Rating Description | 125 V |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Cord Mounted |
| Item Type | Valise |
| Amperage Rating | 15 A |
| Horsepower - Maximum | 0.5 |
| Industry Standard(s) | CSA Certified to C22.2 No 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Current / Amperage Rating | 15 A |
| Performance | Electrical:Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage: Withstands 2,000V minimum Mechanical: Product Identification: Ratings are a permanent part of the device Terminal Accommodation: #18-#12 AWG stranded copper wire only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental :Flammability: UL 94 HB or better IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact) |
| Package Quantity | 1 |
