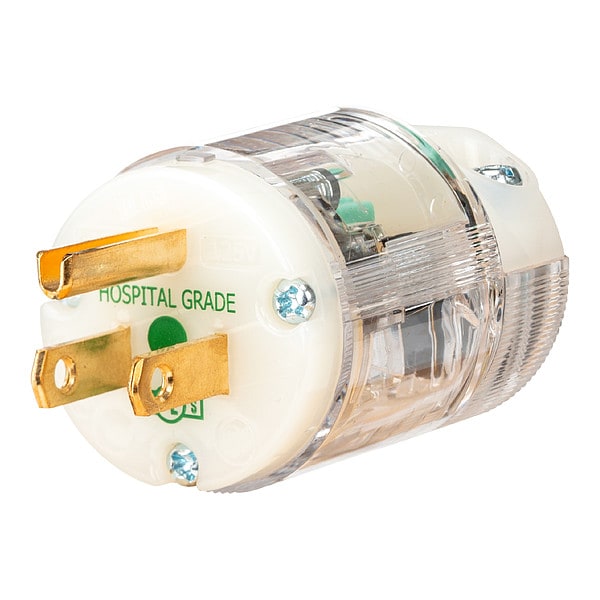

Straight Blade Plug, Clear, 15 A, Grounded
| Item | Straight Blade Plug |
|---|---|
| Wiring Style | Standard |
| Number of Poles | 2 |
| Phase | Single |
| Grade | Hospital Grade |
| Standards | CSA C22.2, Fed. Spec. W-C596G |
| IP Rating | IP20 |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | V-2 |
| Voltage Rating | 125V AC |
| Maximum Operating Temperature | 167 deg F |
| Resistance Properties | Non-Conductive Housing |
| For Minimum Cable Diameter | 0.23 in |
| Market | Industrial, Commercial |
| Insulation Material | Nylon |
| Shrouded | No |
| Outside Diameter | 1.57 in |
| Wire Connection Type | Spring Clamp Terminals |
| For Location | Indoor |
| Horsepower Rating | 0.5 HP |
| Minimum Wire Size | 14 AWG |
| Hazardous Location Specification | Not Applicable |
| For Maximum Cable Diameter | 0.72 in |
| Number of Blades | 3 |
| Minimum Operating Temperature | -40 deg F |
| Body Length | 2.096 in |
| NEMA Enclosure Rating | 6 |
| Face Diameter | 1.527 in |
| Current Rating | 15 A |
| Housing Material | Nylon |
| Overall Length | 3.28 in |
| Housing Color | Clear |
| Polarized | Yes |
| Maximum Wire Size | 10 AWG |
| Grounding | Grounded |
| NEMA Plug Configuration | 5-15P |
| Package Quantity | 1 |
