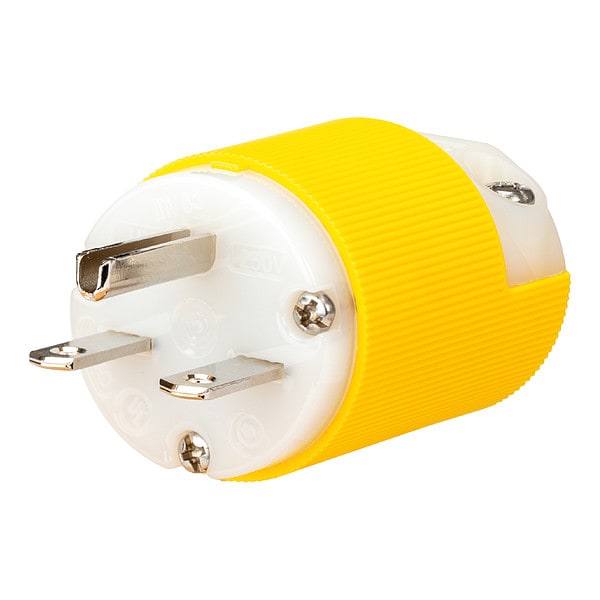

Straight Blade Plug, White/Yellow, 15 A
| Item | Straight Blade Plug |
|---|---|
| Wiring Style | Standard |
| Number of Poles | 2 |
| Standards | CSA C22.2, Fed. Spec. W-C596G, UL 498 |
| Grade | General Use |
| Phase | Single |
| IP Rating | IP20 |
| Market | Industrial, Commercial |
| Housing Color | White, Yellow |
| For Maximum Cable Diameter | 0.72 in |
| For Location | Indoor |
| Overall Length | 3.28 in |
| Resistance Properties | Corrosion Resistant, Non-Conductive Housing |
| Body Length | 2.096 in |
| Horsepower Rating | 1.5 HP |
| Polarized | Yes |
| Insulation Material | Nylon |
| Minimum Operating Temperature | -40 deg F |
| NEMA Plug Configuration | 6-15P |
| Number of Blades | 3 |
| Housing Material | Nylon |
| Connection Orientation | Straight |
| Minimum Wire Size | 14 AWG |
| Maximum Operating Temperature | 167 deg F |
| Face Diameter | 1.527 in |
| NEMA Enclosure Rating | 6 |
| Grounding | Grounded |
| Outside Diameter | 1.32 in |
| Wire Connection Type | Spring Clamp Terminals |
| Voltage Rating | 250V AC |
| For Environment | Industrial |
| UL 94 Flammability Rating | V-2 |
| Shrouded | No |
| For Minimum Cable Diameter | 0.23 in |
| Current Rating | 15 A |
| Hazardous Location Specification | Not Applicable |
| Maximum Wire Size | 10 AWG |
| Package Quantity | 1 |
