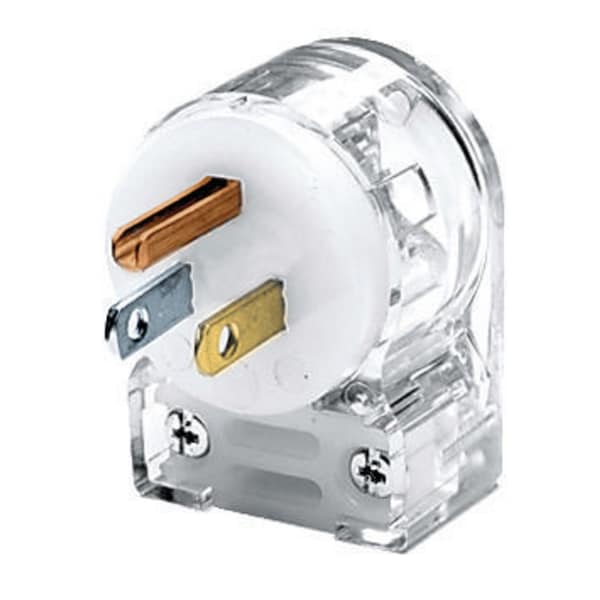

Straight Blade Products, Insulgrip Series
| Item - Plugs and Receptacles | Plug |
|---|---|
| Wiring Style | #18-#10 AWG copper stranded or solid conductor only. |
| Grade - Plugs and Receptacles | Insulgrip |
| Amps - Plugs and Receptacles | 15A |
| Voltage - Plugs and Receptacles | 250 VAC |
| Number of Wires | 3 |
| Number of Poles | 2 |
| IP Rating | IP20 |
| HP | 1/2 |
| Cord Size | .325"-.655" (8.3-16.6) |
| Special Features | Certified for current interrupting at full rated current. |
| NEMA Rating | WD-6; 5-15P |
| Standards | C-73; NEMA; UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280; Terminals identified in accordance with UL498 (Brass, White, Green). |
| Retainer Material | Polycarbonate-Clear |
| Blade Material | Solid Brass |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Weight (Lbs.) | 0.15 |
| Housing Color | Clear |
| Current Rating | 15A,125V |
| Flammability | Rated HB or better UL94 |
| Cord Clamp Material | Nylon-Natural |
| Contact Blades Material | .060" Brass |
| Body Style | Angle |
| Environment | Dry |
| Dielectric Strength | Withstands 2000V per UL498 |
| Ground Contact Blade Material | .040" Copper Alloy |
| Body Material | Impact Modified Nylon |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Blade Holder Material | Nylon-Natural |
| Housing Material | Nylon-Black |
| Grounding | Grounded |
| Package Quantity | 1 |
