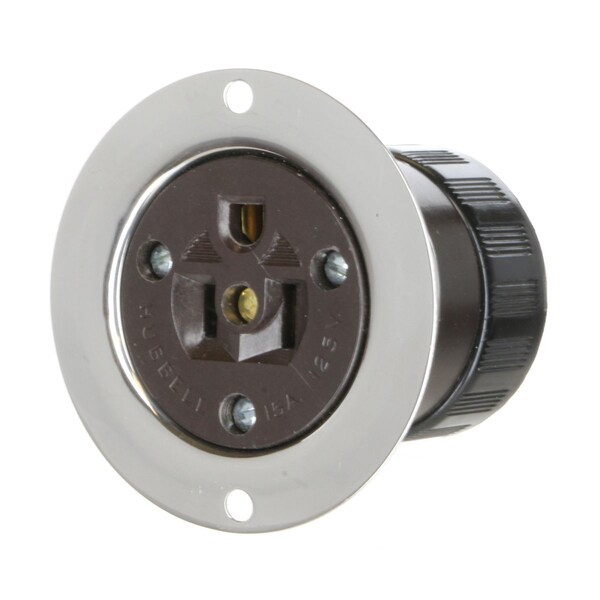

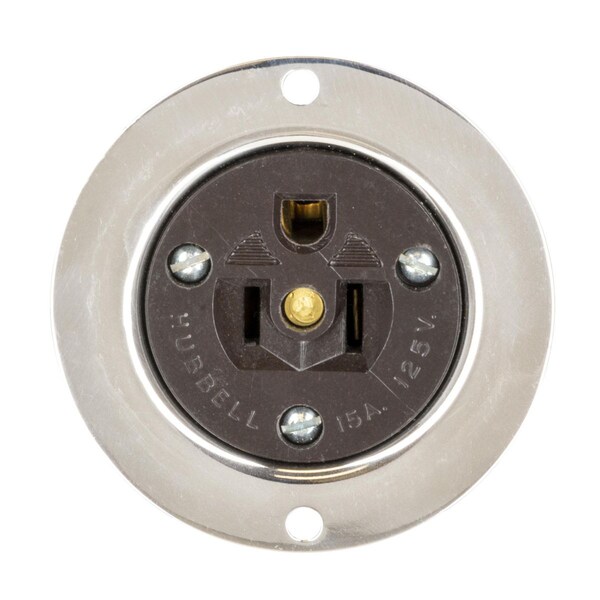

Descubra la calidad y durabilidad de los productos de borde recto con brida metálica de Hubbell Wiring Device-Kellems. Diseñados para satisfacer sus necesidades, estos productos ofrecen un rendimiento excepcional en cualquier entorno.
| Voltage | 125 V |
|---|---|
| Wiring Method | Side Wire Only |
| Color | brown |
| Type | Grounding, 3 Wire, 2 Pole |
| Mounting Screw Material | Steel-Zinc Plated |
| Top Material | Phenolic |
| Terminal Identification | Terminals identified in accordance with UL498 (Brass, White, Green). |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Standard | NEMA |
| Rating | 15A, 125V |
| Dielectric Voltage | Withstands 2,000V minimum. |
| Current Interrupting | Certified for current interrupting at full rated current. |
| Terminal Screw Material | #8-32 Brass, Multiple Drive |
| Horsepower | 0.5 |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Product Type | flanged-receptacles |
| Face Style | Finder Groove |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Receptacle Grade | Heavy Duty Spec Grade |
| NEMA No. | 5-15R |
| Base Material | Phenolic |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C . |
| Amperage | 15 A |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only. |
| Flammability | UL 94 V2. |
| Certification | UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 |
| Power Contacts Material | Bronze |
| Flange Style | Standard Metallic |
| Enhancement | Covered Terminals |
| Package Quantity | 1 |
