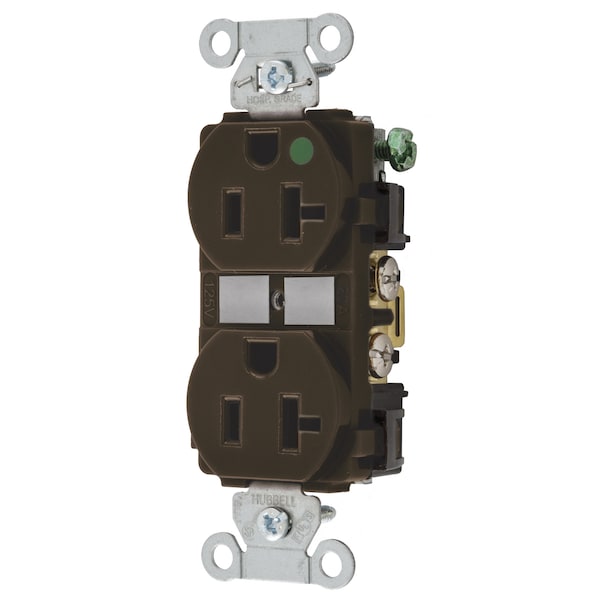

Straight Blade Receptacle, 20 A, 125V AC, 2 Pole, 3 Wire, Single
| Item | Straight Blade Receptacle |
|---|---|
| Receptacle Type | Duplex |
| Current Rating | 20 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Wire Connection Type | Screw Terminals |
| Wiring Method | Back, Side |
| Housing Color | Brown |
| Standards | Certified to CSA, C22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant, UL Listed to UL498 File No. E2186 |
| Width | 1.57 in |
| Material | Nylon |
| Height | 1.15 in |
| Length | 3.28 in |
| Application | Hubbell-Pro Heavy Duty Hospital Grade |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Automatic Self-grounding Staple | Stainless steel |
| Flammability | UL 94V-2 |
| Ground Contacts | Brass |
| Clamping Plate | Plated steel |
| Current Interrupting | Certified for current interrupting at full rated current |
| Mounting Strap | steel |
| Terminal Accommodation | solid copper wire only, #12-#10 AWG stranded |
| Mounting Screws | Zinc plated steel |
| Base | PBT |
| Dielectric Voltage | Withstands 2,000V minimum |
| Device Color | Brown |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Power Contacts | Brass |
| Face | Nylon |
| Connectivity | Back and Side Wired |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Dielectric Strength | Withstands 2,000V minimum |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Material - Mounting Hardware | Screw Mounting |
| Series | Hubbell-Pro |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wattage | 2500 W |
| Dimensions | 3.28 in x 1.57 in x 1.15 in |
| Style | Smooth Face |
| Wire Size | #12 AWG to #10 AWG |
| Horsepower - Maximum | 1 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | Standard Sized Product |
| Nema Rating | 5-20R |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
