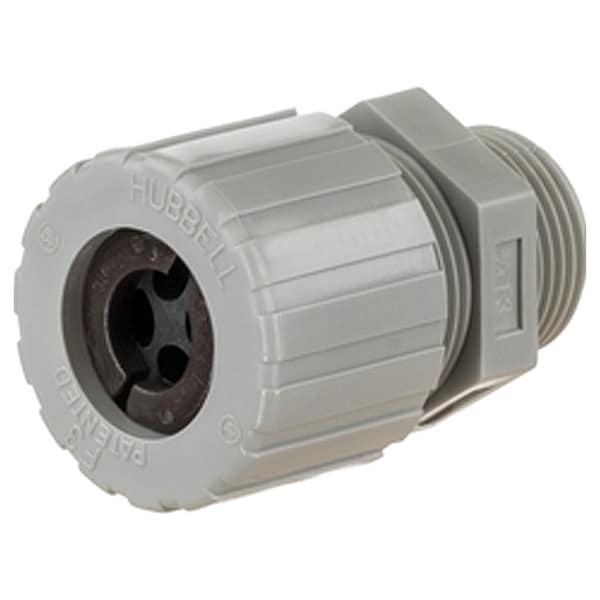

Straight Multi-Cable Grip, 1-5/8 in L
| Item | Straight Multi-Cable Grip |
|---|---|
| Standards | UL Listed |
| Number of Cords | 4 |
| Minimum Operating Temperature | -30 deg F |
| Environmental Rating | Hazardous Locations |
| Insulated | No |
| Resistance Properties | Corrosion Resistant, UV Resistant |
| Cord Dia. Range | 0.23 to 0.29 in |
| Includes | Not Applicable |
| Material - External Strain Relief | Nylon |
| Hazardous Location Rating | Class I Division 2, Class II Division 1, Class II Division 2, Class Ill Division 1 |
| Form Size | F3 |
| Strain Relief Type | No External Strain Relief |
| For Use With | Cord |
| For Minimum Cable OD | 0.23 in |
| Length - External Strain Relief | 2-3/16 in |
| Body Material | Nylon |
| For Maximum Cable OD | 0.29 in |
| Length - Box to End of Connector | 1-5/8 in |
| Box Connection | 3/4 in MNPT |
| Body Color | Black |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 225 deg F |
| Hub Size | 3/4 in |
| Liquid Tight | Yes |
| Collar Material | Nylon |
| Thread Type | NPT |
| Grommet Color Code | No Code |
| Grommet Material | Neoprene |
| Sealing Ring Material | Not Applicable |
| IP Rating | IP 66 |
| Bushing Material | Neoprene |
| NEMA Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X |
| Overall Length | 2-3/16 in |
| Indoor/Outdoor Usage | Indoor/Outdoor |
| Compatible Conduit Type | Not Applicable |
| Gripper Material | Nylon |
| Hazardous Location Rating - Europe | Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 |
| Thread Gender | Male |
| Compatible Conduit Trade Size | 3/4 in |
| Package Quantity | 1 |
