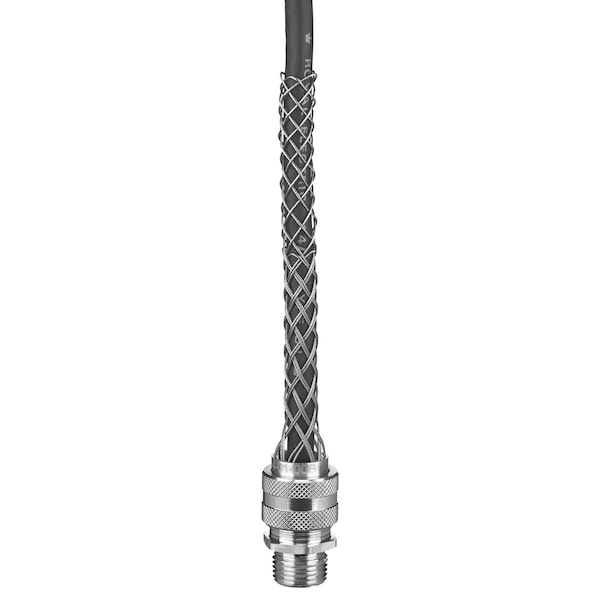

Strain Relief Cord Grip, 1.75 to 1.88
| Trade Size | 1-1/2 in |
|---|---|
| Strain Relief Type | Mesh |
| Length - External Strain Relief | 11 in |
| Material - External Strain Relief | Stainless Steel |
| Liquid Tight / Dust Tight | Liquid Tight |
| Item - Cord Connector | Liquid Tight Cord Connector with Strain Relief |
| Insulated | No |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Insulated / Uninsulated | Uninsulated |
| Style - Connector | Straight |
| Gland Color Code | No Code |
| Cord Dia. Range | 1-3/4 to 1.88 in |
| Cord Grip Type | Straight |
| Standards | CSA, UL |
| Material | Aluminum |
| Body Color - Cord Connector | Silver |
| Box Connection | 1-1/2 in MNPT |
| Item | Threaded Connectors |
| Number of Cords | 1 |
| Cable Dia. Range | 1-3/4 to 1.88 in |
| Length - Box to End of Connector | 2-3/16 in |
| Material - Cord Connector | Aluminum |
| Male/Female | Male |
| Mesh Length | 11 in |
| Connection Orientation | Straight |
| Grommet Color Code | No Code |
| Thread Gender | Male |
| Collar Material | Aluminum |
| Minimum Operating Temperature | -30 deg F |
| For Maximum Cable OD | 1-7/8 in |
| For Use With | Kellems Wire Management |
| Maximum Operating Temperature | 240 deg F |
| Thread Size | 1 1/2 in |
| Thread Type | NPT |
| Environmental Rating | Hazardous Locations |
| Body Material | Aluminum |
| Compatible Conduit Type | Liquid Tight Cord Connector with Strain Relief |
| Liquid Tight | Yes |
| Hub Size | 1-1/2 in MNPT |
| Body Color | Silver |
| Compatible Conduit Trade Size | 1-1/2 in |
| Form Size | F6 |
| Series | Deluxe Cord Grips |
| Resistance Properties | Corrosion Resistant |
| For Minimum Cable OD | 1-3/4 in |
| Material - Mounting Hardware | Locknut or Tapped Opening |
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
| Item Type | Deluxe Cord Grips |
| Conductor Range | 1.75-1.875 in |
| Industry Standard(s) | UL Listed |
| Number Of Conductors | Single |
| Type | Straight Male Thread |
| Cable Size | 1-3/4 to 1-7/8 in |
| Cable Diameter Range | 1-3/4 to 1-7/8 in |
| Application | Straight Male- Form 6 |
| Style | For Insulated Cables |
| Display Size | 1 1/2" NPT |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting. |
| Package Quantity | 1 |
