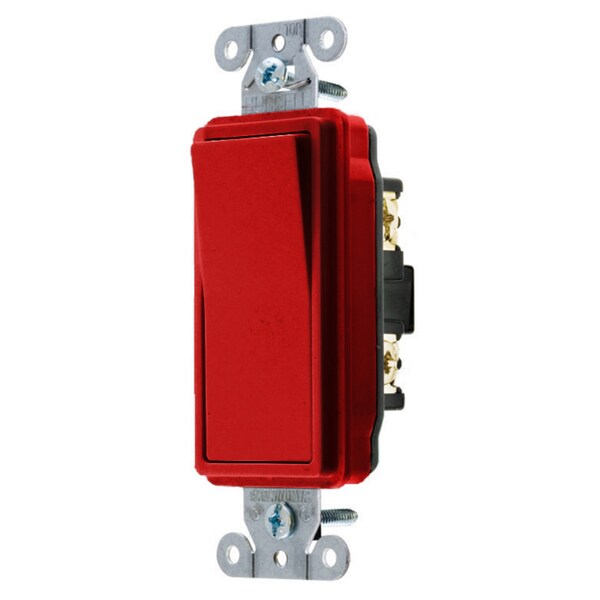

El interruptor decorativo de grado de especificación de Hubbell Wiring Device-Kellems es ideal para controlar la iluminación en instalaciones comerciales o residenciales. Con capacidad para 20A y voltaje de 120/277V AC, este interruptor de cuatro vías en color rojo es una opción duradera y confiable. Diseñado para un cableado fácil posterior y lateral.
| Item | Four Way Style Line Decorator Switch |
|---|---|
| Color | Red |
| Height | 1.67 in |
| Width | 1.73 in |
| Type | Decorator, Rocker |
| Style | Four Way |
| Length | 4.28 in |
| Series | General Purpose |
| Amperage | 20 A |
| Action | DPDT |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Temp. Rise | 30°C maximum at rated current |
| Connectivity | Back and Side Wired |
| Carton Quantity | 10 |
| Weight | 0.2 lb |
| Dimensions | 4.28 in x 1.73 in x 1.67 in |
| Current Rating | 20 A |
| Voltage Rating | 120-277 VAC |
| UPC | 783585000000 |
| Number Of Poles | Double Pole |
| Wire Size | #14 AWG to #10 AWG |
| Material | Thermoplastic |
| Rocker Material | Thermoplastic |
| Max. Continuous Current | 20 A |
| Terminal Screws | Brass |
| Ground Screw | Brass (Green) |
| Rocker Color | Red |
| Mounting Bridge | Nickel Plated Steel with Auto Ground Staple |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Temperature Rise | 30°C maximum at rated current |
| Contacts | Silver Alloy |
| Flammability | UL 94V-2 |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Max. Working Voltage | 277V AC |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Item Type | Four Way Style Line Decorator Switch |
| Industry Standard(s) | UL Listed |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Package Quantity | 1 |
