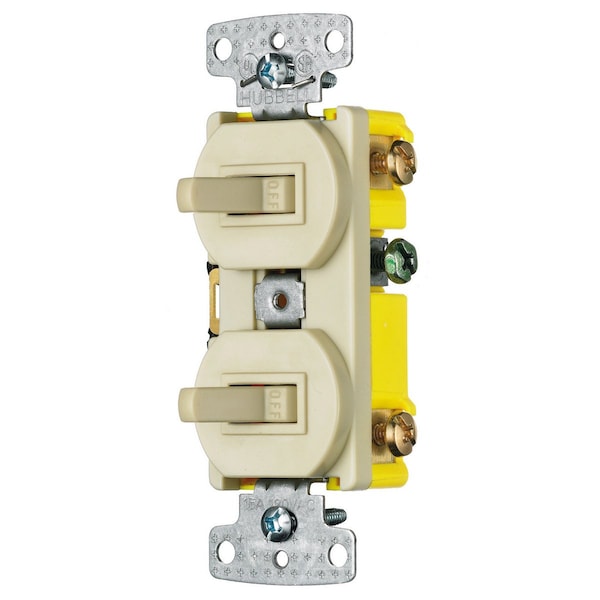

Dispositivos combinados de interruptores y controles de iluminación de grado residencial, incluye 2 interruptores de tres vías de 15 amperios y 120 voltios, con auto-puesta a tierra y cableado lateral en color marfil.
| Application | Residential |
|---|---|
| Action | Snap Switch |
| Item Type | Traditional Switch Combo Devices |
| Industry Standard(s) | UL Listed |
| Voltage Rating Description | 120 VAC |
| Material - Mounting Hardware | Mounting Screws |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 15 A |
| Number Of Poles | 2 Three Way |
| Actuator | Toggle |
| Wattage | 1800 |
| Contact Rating | 15A |
| Current Rating | 15 A |
| Display Size | Standard Size |
| Connectivity | Side Wired |
| Voltage Rating | 120 VAC |
| Performance | Environmental - Operating temperature - -20°C to 60°C |
| Operating Cycles | 30,000 Minimum |
| Operating Temperature | Max Continuous- 60 Degrees C, Minimum- -20 Without Impact |
| Contact Configuration | Two Position |
| Amperage Rating | 15 A |
| Package Quantity | 1 |
