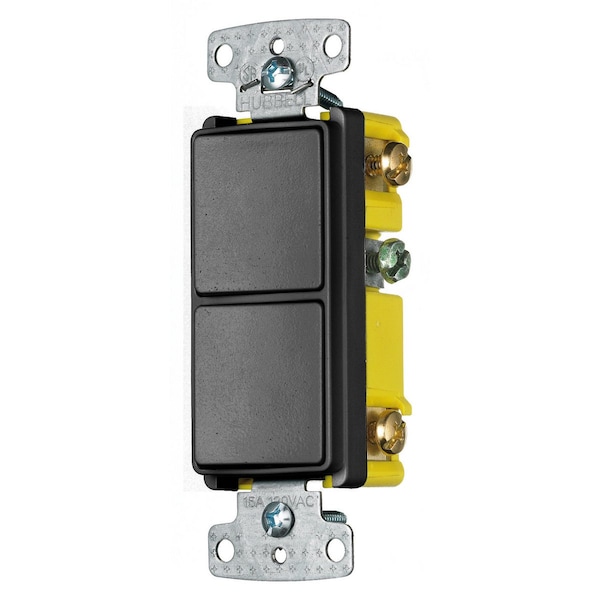

Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Single Pole Rockers, 15A 120V AC, Side Wired, Black
| Application | Residential |
|---|---|
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating Description | 120/277V AC kV |
| Operating Temperature | Max Continuous- 60 Degrees C, Minimum- -20 Without Impact |
| Material - Mounting Hardware | Mounting Screws |
| Operating Cycles | 30,000 Minimum |
| Contact Rating | 15A |
| Current Rating | 15 A |
| Wattage | 4155 |
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Display Size | Standard Size |
| Connectivity | Side Wired |
| Actuator | Rocker |
| Number Of Poles | 2 Single Pole |
| Voltage Rating | 120/277V AC kV |
| Contact Configuration | Two Position |
| Item Type | Decorator Switch Combo Devices |
| Action | Snap Switch |
| Performance | Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute Electrical - Endurance - 30,000 cycles minimum Electrical - Max. working voltage - 120V Electrical - Overload - 1.5 times rating Environmental - Flammability - UL V0 Environmental - Operating temperatures - Maximum continuous 60°C minimum -20°C (without impact) Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only push wire: #14 AWG solid copper wire only |
| Industry Standard(s) | CSA Certified UL Listed E3896 |
| Package Quantity | 1 |
