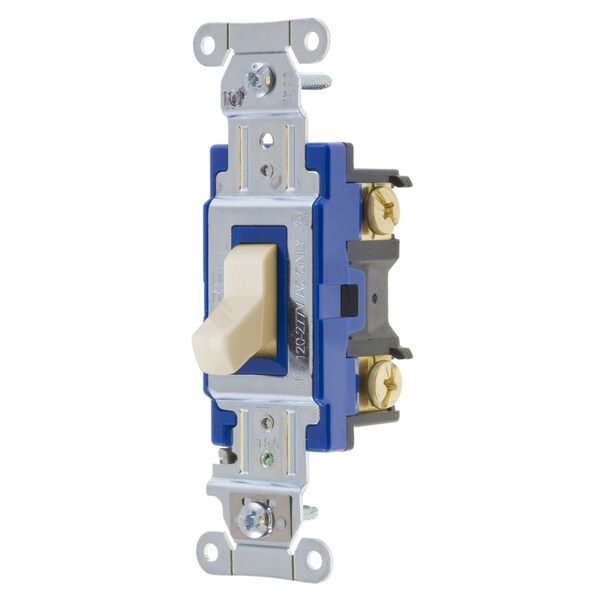

Los interruptores y controles de iluminación de la serie Hubbell- PRO ofrecen un rendimiento confiable en aplicaciones de corriente alterna de uso general. Este interruptor de palanca de una sola vía se puede cablear tanto en la parte posterior como en el lateral, lo que lo hace ideal para diversas configuraciones de instalación.
| Switch Type | Single Pole |
|---|---|
| Color | Light Almond |
| Type | Toggle |
| Height | 1.83 in |
| Series | Heavy Duty |
| Voltage | 120/277V AC |
| Width | 1.49 in |
| Length | 4.18 in |
| Application | Back and Side Wired |
| Style | Single Pole |
| Wire Size | #14 AWG to #10 AWG |
| Temp. Rise | 30°C maximum at rated current |
| Current Rating | 15 A |
| Carton Quantity | 10 |
| Dimensions | 4.18 in x 1.49 in x 1.83 in |
| Amperage | 15 A |
| Number Of Poles | Single Pole |
| Voltage Rating | 120-277 VAC |
| Connectivity | Back and Side Wired |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Flammability | UL 94V-2 |
| Product Type | Toggle-switches |
| Listing and Certifications | UL Listed and CSA Certified |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Temperature Rise | 30°C maximum at rated current |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Switch Grade | Hubbell-Pro Series |
| Max. Working Voltage | 277V AC |
| Wiring Style | Back and Side Wired |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Switch Handle Positions | 2 |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Max. Continuous Current | 15 A |
| Toggle Color | Light Almond |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Voltage Rating Description | 120-277 VAC |
| Current / Amperage Rating | 15 A |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Amperage Rating | 15 A |
| Industry Standard(s) | UL Listed |
| Package Quantity | 1 |
