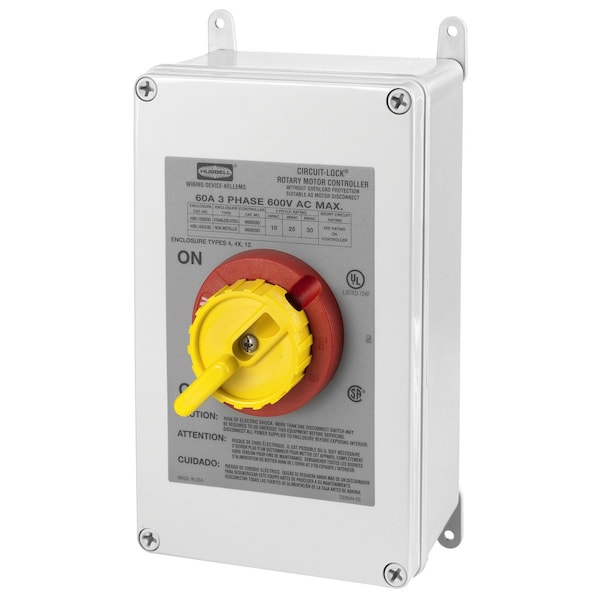

Interruptores y controles de iluminación, grado industrial, cajas con interruptores, desconexiones de motor, tres polos, 60A 600V AC, tornillos de terminal cableados frontalmente.
| Phase | Three Phase |
|---|---|
| Application | Rotary |
| Connectivity | Pressure Terminal Screws |
| Enclosure Type | NEMA 4X |
| Material - Mounting Hardware | Screw Mounting |
| Type | Disconnect Switches |
| Series | Non-Fused |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Industry Standard(s) | CSA-C22.2 No.14 Industrial Control File LR-46186 UL 508, Industrial Control File #E70402 |
| Display Size | Standard Sized Product |
| Performance | Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94HB/VO Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact Mechanical - Mechanical Life - Min. 10,000 minimum cycles Mechanical - Switch Rating - 25 inch pounds Mechanical - Terminal Accommodations - #10 AWG Max Mechanical - Terminal Torque - 20 inch pounds Mechanical - Wire Type - Solid and stranded copper wire only |
| Style | Standard Duty |
| Current Rating | 60 A |
| Environmental Conditions | Indoor and Outdoor |
| Operating Cycles | 10,000 Cycles Minimum |
| Amperage Rating | 60 A |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Current / Amperage Rating | 60 A |
| Load Capacity | Inductive |
| Wattage | 36,000 |
| Package Quantity | 1 |
