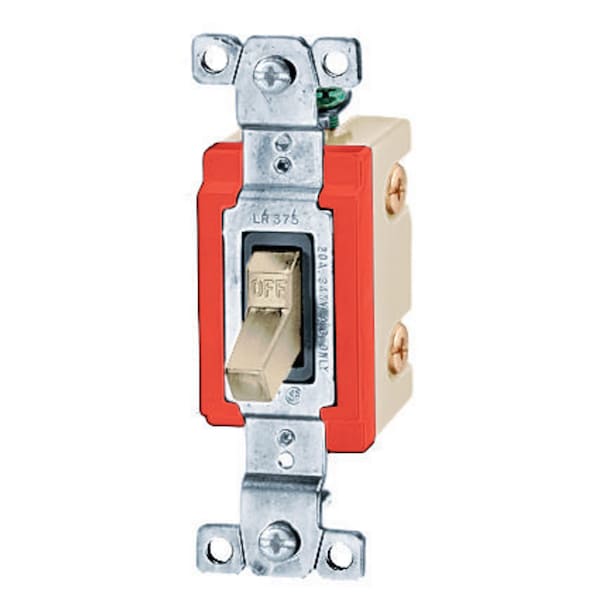

Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 347V AC, Terminal Screws, Ivory
| Switch Type | Single Pole |
|---|---|
| Color | Ivoire |
| Width | 1.3 in |
| Type | Toggle |
| Style | Single Pole |
| Height | 1.86 in |
| Voltage | 347V AC |
| Length | 4.06 in |
| Dimensions | 4.06 in x 1.3 in x 1.86 in |
| Current Rating | 15 A |
| Series | Extra Heavy Duty |
| Temp. Rise | 30°C maximum at rated current |
| Connectivity | Back and Side Wired |
| Wire Size | #14 AWG to #10 AWG |
| Carton Quantity | 10 |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Amperage | 15 A |
| Voltage Rating | 347 VAC |
| Number Of Poles | Single Pole |
| Application | Back and Side Wired |
| Switch Handle Positions | 2 |
| Flammability | UL 94V-2 |
| Listing and Certifications | CSA Certified |
| Product Type | Toggle-switches |
| Max. Working Voltage | 277V AC |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Toggle Color | Ivory |
| Wiring Style | Back and Side Wired |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Max. Continuous Current | 15 A |
| Switch Grade | Industrial |
| Temperature Rise | 30°C maximum at rated current |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Amperage Rating | 15 A |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Current / Amperage Rating | 15 A |
| Industry Standard(s) | UL Listed |
| Voltage Rating Description | 347 VAC |
| Package Quantity | 1 |
