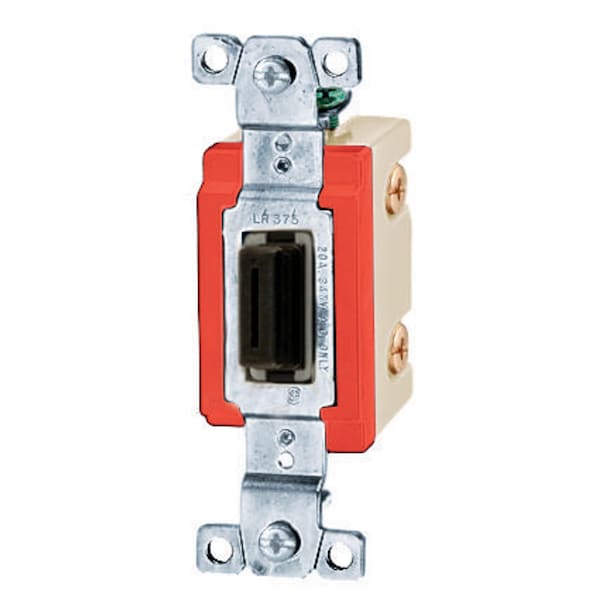

Interruptores y controles de iluminación de grado industrial, interruptores de palanca, AC de uso general, de tres vías, 15A 347V AC, con tornillos terminales, guía de llave de nylon negro. Productos de alta calidad para aplicaciones industriales.
| Switch Type | Three Way |
|---|---|
| Color | Black |
| Length | 4.06 in |
| Voltage | 347V AC |
| Width | 1.3 in |
| Height | 1.86 in |
| Type | Locking |
| Style | Three Way |
| Temp. Rise | 30°C maximum at rated current |
| Temp. Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Brand | Hubbell Wiring Device-Kellems |
| Actuator | Key |
| Action | Snap |
| Display Size | Standard Product Size |
| Contact Configuration | 3-Position |
| Contact Rating | Full Rated |
| Application | General Purpose |
| Number Of Poles | Single Pole |
| Carton Quantity | 10 |
| Connectivity | Back and Side Wired |
| Dimensions | 4.06 in x 1.3 in x 1.86 in |
| Lock Type | Non-Cylindrical |
| Load Capacity | Inductive or Resistive |
| Wire Size | #14 AWG to #10 AWG |
| Amperage | 15 A |
| Voltage Rating | 347 VAC |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Current Rating | 15 A |
| Series | Extra Heavy Duty |
| Switch Grade | Industrial |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Switch Handle Positions | 2 |
| Temperature Rise | 30°C maximum at rated current |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Max. Continuous Current | 15 A |
| Toggle Color | Locking |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Product Type | Toggle-switches |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Flammability | UL 94V-2 |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Wiring Style | Back and Side Wired |
| Max. Working Voltage | 277V AC |
| Listing and Certifications | CSA Certified |
| Amperage Rating | 15 A |
| Indicator(s) Type | Dot Indicates On |
| Current / Amperage Rating | 15 A |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Voltage Rating Description | 347 VAC |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | UL Listed |
| Wattage | 6,940 W |
| Material - Mounting Hardware | Mounting Screws |
| Package Quantity | 1 |
