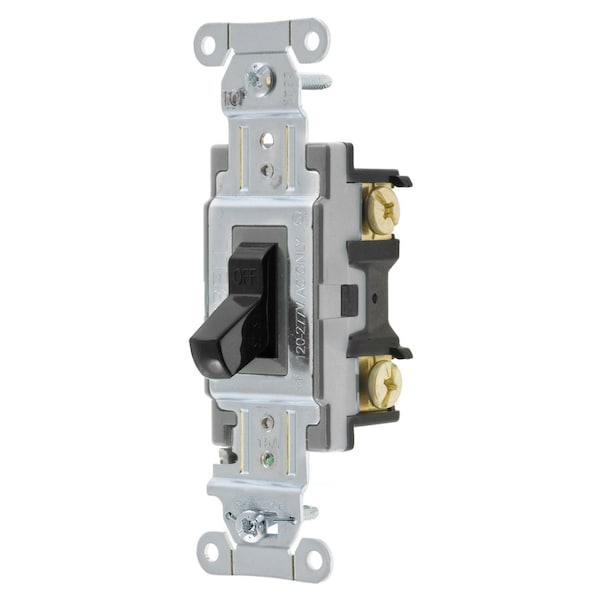

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, BlackToggle
| Item | Single Pole Toggle Switch |
|---|---|
| Color | Black |
| Type | Toggle |
| Style | Single Pole |
| Length | 4.18 in |
| Height | 1.83 in |
| Width | 1.49 in |
| Amperage | 15 A |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Carton Quantity | 10 |
| Current Rating | 15 A |
| Series | General Purpose |
| Temp. Rise | 30°C maximum at rated current |
| Dimensions | 4.18 in x 1.49 in x 1.83 in |
| Number Of Poles | Single Pole |
| Voltage Rating | 120-277 VAC |
| Wire Size | #14 AWG to #10 AWG |
| Connectivity | Side Wired Only |
| Material | Nylon |
| Contacts | Silver Alloy |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Toggle Material | Nylon |
| Max. Continuous Current | 15 A |
| Auto Grounding Mounting Bridge | Zinc Plated Steel |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Base Material | Thermoplastic, Black |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Temperature Rise | 30°C maximum at rated current |
| Max. Working Voltage | 277V AC |
| Top Material | Thermoplastic, Gray |
| Terminal Screws | Brass |
| Flammability | UL 94V-2 |
| Toggle Color | Black |
| Ground Screw | Brass (Green) |
| Current / Amperage Rating | 15 A |
| Industry Standard(s) | UL Listed |
| Item Type | Single Pole Toggle Switch |
| Amperage Rating | 15 A |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Package Quantity | 1 |
