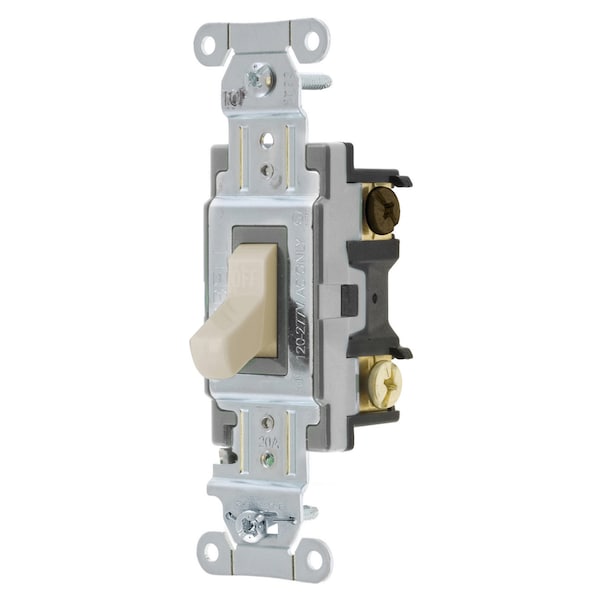

Los interruptores y controles de iluminación Hubbell Wiring Device-Kellems ofrecen un interruptor de palanca de grado comercial, ideal para usar en instalaciones de tres vías. Con una capacidad de 20A y voltaje de 120/277V AC, este interruptor cuenta con cableado lateral y palanca en color almendra para una instalación sencilla y un aspecto estético. Adecuado para aplicaciones comerciales.
| Item | Three Way Toggle Switch |
|---|---|
| Switch Type | Three Way |
| Color | Light Almond |
| Type | Toggle |
| Length | 4.18 in |
| Height | 1.83 in |
| Width | 1.49 in |
| Style | Three Way |
| Voltage | 120/277V AC |
| Dimensions | 4.18 in x 1.49 in x 1.83 in |
| Wire Size | #14 AWG to #10 AWG |
| Number Of Poles | Single Pole |
| Action | SPDT |
| Current Rating | 20 A |
| Series | General Purpose |
| Carton Quantity | 10 |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Amperage | 20 A |
| Connectivity | Side Wired Only |
| Temp. Rise | 30°C maximum at rated current |
| Voltage Rating | 120-277 VAC |
| Material | Nylon |
| Switch Handle Positions | 2 |
| Wiring Style | Side Wired Only |
| Max. Working Voltage | 277V AC |
| Temperature Rise | 30°C maximum at rated current |
| Max. Continuous Current | 20 A |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Flammability | UL 94V-2 |
| Listing and Certifications | Listed to Standard UL 20, CSA Certified, Meets NEMA WD1 |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Switch Grade | Specification Grade |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Toggle Color | Light Almond |
| Product Type | Toggle-switches |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Item Type | Three Way Toggle Switch |
| Package Quantity | 1 |
