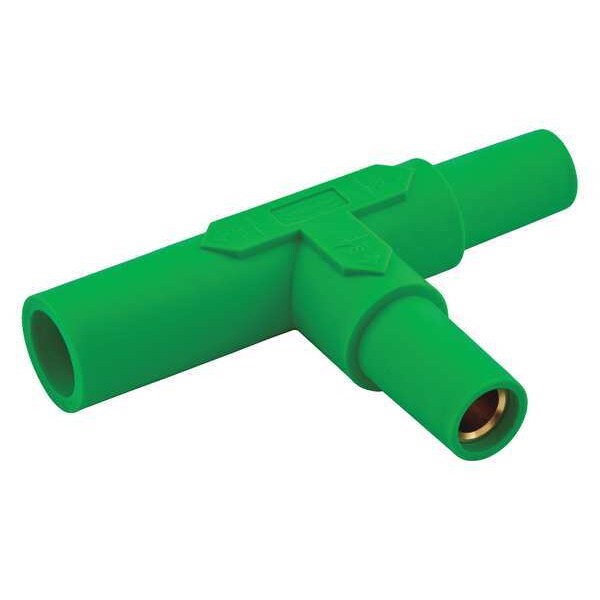

El derivador en T de color verde, serie 15, con punta cónica es ideal para conexiones eléctricas seguras y confiables. Fabricado por Hubbell Wiring Device-Kellems para garantizar un rendimiento óptimo.
| Item | Tapping Tee |
|---|---|
| Type | Tees |
| Series | 15 |
| Terminal Connection | N/A |
| Male/Female | Female-Female Male |
| Current Rating | 150 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12, 3R, 4X |
| Color | Green |
| Material | Thermoplastic Elastomer |
| Conductor Material | Brass |
| Standards | cUL, UL |
| Amps AC/DC | 150 AC/DC |
| Cable Range | N/A |
| Single Pole Device Style | Taper Nose |
| Fits | UL1691 |
| Amps AC | 150 A |
| Mounting | Tee, Tapping Tee Female-Female-Male |
| Product Type | Paralleling Tee |
| Overall Length | 4.28 in |
| Overall Width | 0.86 in |
| Gender Configuration | Female-Male-Female |
| Contact Material | Brass |
| Housing Material | Thermoplastic Elastomer |
| Minimum Operating Temperature | -40 Degrees C |
| Compatible with Series | 15 |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Housing Color | Green |
| Overall Height | 2.67 in |
| Maximum Operating Temperature | 75 Degrees C |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Material - Mounting Hardware | Cord Mounted |
| Item Type | Tee |
| Voltage Rating Description | 600V AC/DC |
| Connectivity | Plug-In |
| Display Size | Standard |
| Application | Temporary Electrical Power |
| Insulation | Insulated Body |
| Number Of Conductors | 1 Conductor |
| Number Of Poles | 1-Pole |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Amperage Rating | 150 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 150 A |
| Style | Tapping Tee Female-Female-Male |
| Package Quantity | 1 |
