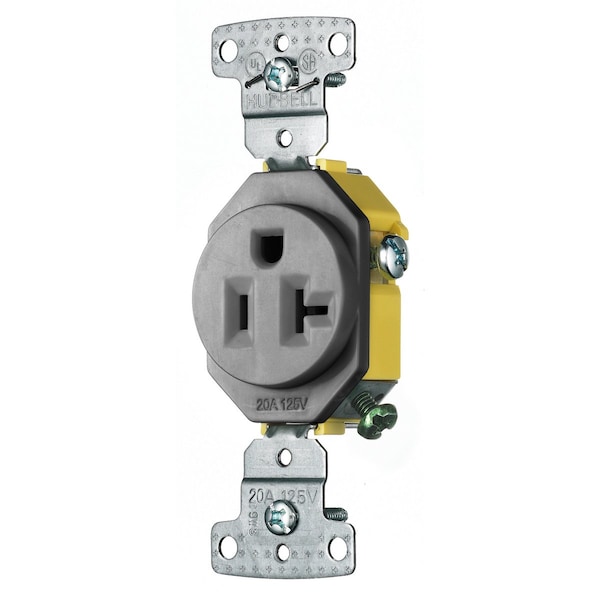

TradeSelect, Dispositivos de Hoja Recta, Grado Residencial, Receptáculos a Prueba de Manipulaciones, Sencillo, 20A 125V, 2 polos 3 cables tierra, 5-20R.
| Material | Thermoplastic |
|---|---|
| Phase | Single Phase |
| Color | Gray |
| Application | Residential Receptacles |
| Voltage Rating Description | 125 VAC |
| Connectivity | Side Wired |
| Number Of Poles | 2-Pole |
| Display Size | Standard Sized Product |
| Nema Rating | 5-20R |
| Current Rating | 20 A |
| Amperage Rating | 20 A |
| Number Of Wires | 3-Wire Grounding |
| Voltage Rating | 125 VAC |
| Material - Mounting Hardware | Screw Mounting |
| Wattage | 2500 |
| Item Type | Single |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #14 AWG to #12 AWG |
| Current / Amperage Rating | 20 A |
| Performance | Environmental - Operating temperature - -20°C to 60°C Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only |
| Package Quantity | 1 |
