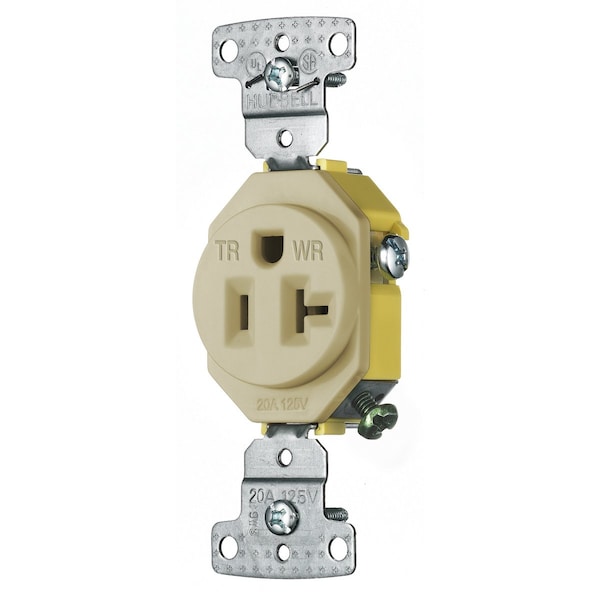

TradeSelect, Receptáculo sencillo de hoja recta, Resistente a la intemperie y a manipulaciones, 20A 125V, 2 polos 3 hilos a tierra, 5-20R, Marfil
| Material | Thermoplastic |
|---|---|
| Color | Ivory |
| Application | Residential Receptacles |
| Phase | Single Phase |
| Number Of Poles | 2-Pole |
| Current Rating | 20 A |
| Display Size | Standard Sized Product |
| Connectivity | Side Wired |
| Nema Rating | 5-20R |
| Wattage | 2500 |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 20 A |
| Voltage Rating | 125 VAC |
| Voltage Rating Description | 125 VAC |
| Item Type | Single |
| Amperage Rating | 20 A |
| Wire Size | #14 AWG to #12 AWG |
| Number Of Wires | 3-Wire Grounding |
| Environmental Conditions | Weather Resistant |
| Industry Standard(s) | Certified to CSA, C22.2, No. 41 File No. 23253 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2185 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-1 Environmental - Operating temperature - -20°C to 60°C, without impact Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA C22.2, No. 41 |
| Package Quantity | 1 |
