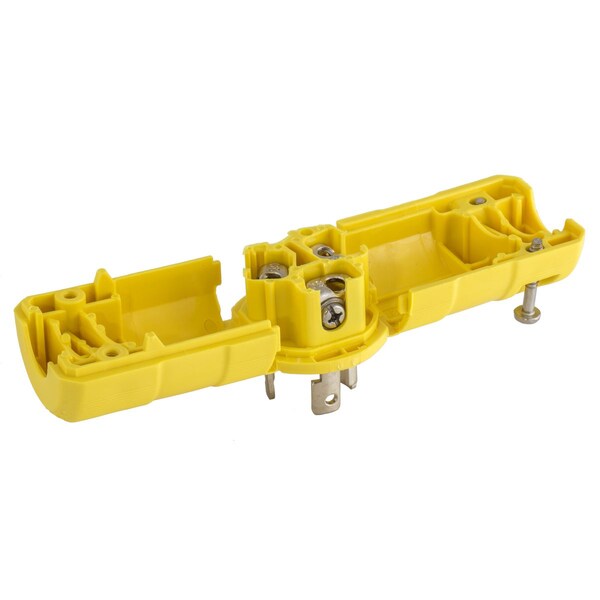

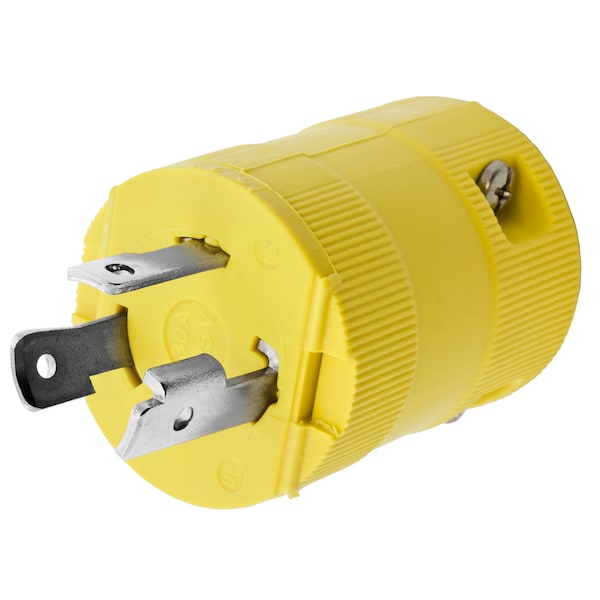

Enchufe de maletín Twist-Lock Chem-Marine
| Item - Plugs and Receptacles | Chem/Marine- Plug |
|---|---|
| Amps - Plugs and Receptacles | 30A |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2-Pole, 3-Wire Grounding |
| Cord Size | .590"-.930" |
| HP | 2 |
| Color | Yellow |
| Standards | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green),UL/CSA |
| IP Rating | IP20 |
| NEMA Configuration | L5-30P |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.2 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Blade Material | Brass |
| Package Quantity | 1 |
