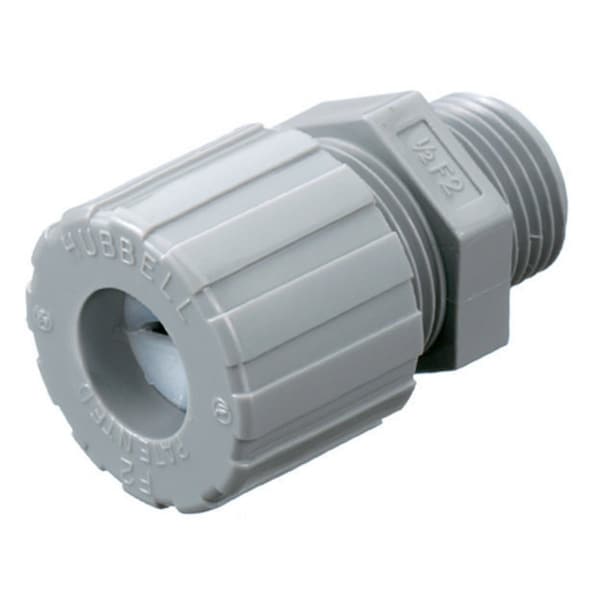

Underground Cord Connector, 1/2 in., Gray
| Item - Cord Connector | Liquid Tight Cord Connector |
|---|---|
| Item | Liquid Tight Underground Cord Connector |
| Male/Female | Male |
| Style - Connector | Straight |
| Hub Size | 1/2 in MNPT |
| Cord Dia. Range | 1/4 to 0.55 in |
| Material | Nylon |
| Color | Gray |
| Box Connection | 1/2 in MNPT |
| For Use With | Kellems Wire Management |
| Material - Cord Connector | Nylon |
| Material - External Strain Relief | No External Strain Relief |
| Hub Trade Size | 1/2" |
| Gland Color Code | No Code |
| Liquid Tight / Dust Tight | Liquid Tight |
| Number of Cords | 1 |
| Standards | CSA Certified LR27378, Title 46-Part 111, UL Listed E54218(M), United States Coast Guard Approval |
| Connector Type | Straight |
| Body Color - Cord Connector | Gray |
| Length - Box to End of Connector | 1-1/2 in |
| Strain Relief Type | No External Strain Relief |
| Length - External Strain Relief | No External Strain Relief |
| Insulated | Yes |
| Length | 2.05 in |
| Min. Throat Dia. | 0.58 in |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Body Material | Nylon |
| Body Color | Gray |
| IP Rating | IP66 |
| Maximum Operating Temperature | 225 deg F |
| Thread Gender | Male |
| Minimum Operating Temperature | -30 deg F |
| For Maximum Cable OD | 1/4 in, 0.55 in |
| Grommet Color Code | No Code |
| Thread Type | NPT Thread |
| Connection Orientation | Straight |
| Compatible Conduit Trade Size | 1/2 in |
| Liquid Tight | Yes |
| Environmental Rating | Hazardous Locations, Not Flammable |
| Thread Size | 1/2 in |
| For Minimum Cable OD | 0.2 in, 0.4 in |
| Collar Material | Nylon |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Dimension E A/F | 1.13 in |
| Cord Diameter Range | .2"x.4" min .25"- .55" max |
| Certifications | UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111. |
| Recommended Knockout Hole Size | .86"- .91" (21.8-23.0) |
| Hazardous Locations | Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b). |
| Dimension C | .55" |
| Dimension D | .58" Throat Dia. |
| Flammability | Hubbell nylon cord connectors have a UL 94-V2 rating. |
| Product Type | Underground Feeder Connectors |
| Material/Style | Nylon |
| Dimension A | 1.32 in |
| UF Wire Size | 2 # 14, 2 # 12, 2 # 10 |
| Dimension E A/C | 1-1/4 in |
| Cord Connector Body Style | Underground Feeder |
| Dimension B | 1.50" (38.1) Ref. |
| Package Quantity | 1 |
