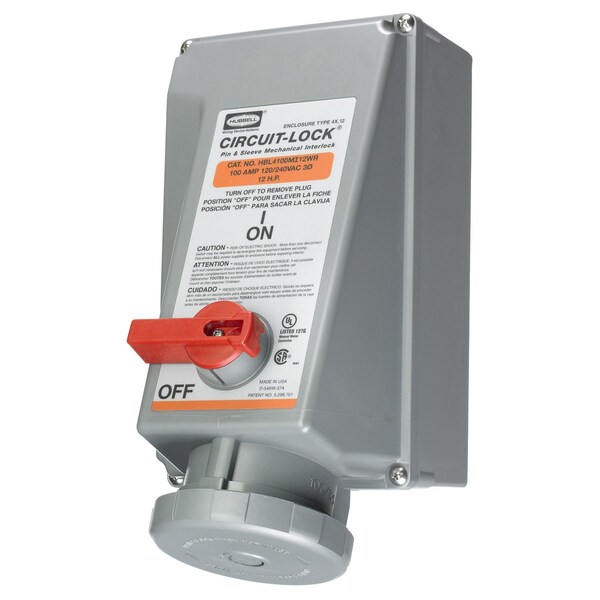

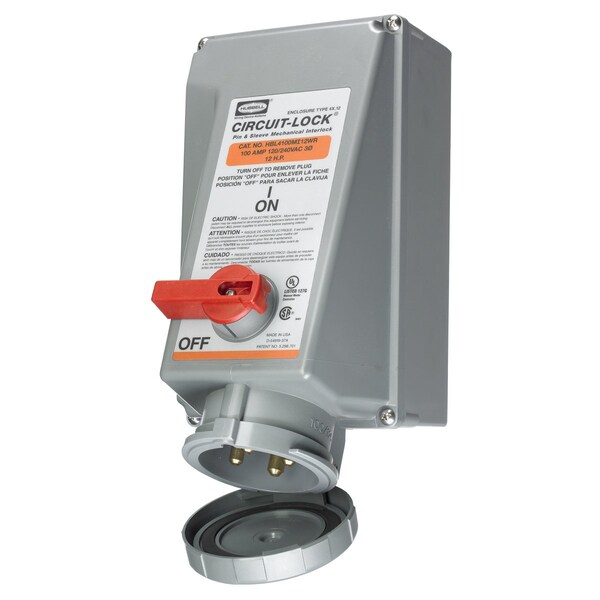

Unfused Circuit-Lock Interlock Device- Reversed Service, Mechanical Interlock, IEC, 3P4W, 100A 125/250V
| Type | Receptacle |
|---|---|
| Body Material - Pin and Sleeve | Valox |
| Amps - Plugs and Receptacles | 100 A |
| Voltage | 125/250V |
| Color - Plugs and Receptacles | Orange |
| Number of Poles | 3 |
| Number of Wires | 4 |
| NEMA Rating | 4X, 12 |
| Standards | UL Listed, CSA Certified, UL746C |
| Features | IEC Mechanical Interlock, UV Stabilized |
| IP Rating | IP67 |
| Operating Temp. Range | -40 to 75° C |
| Wire Size | 2 to 10 AWG |
| Package Quantity | 1 |
