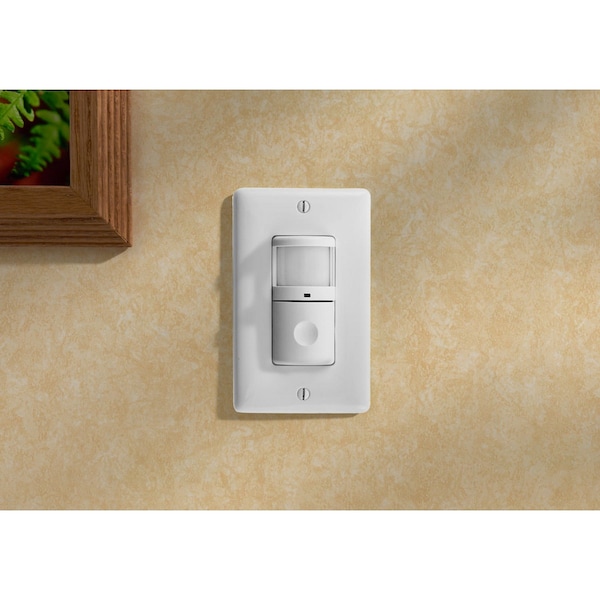

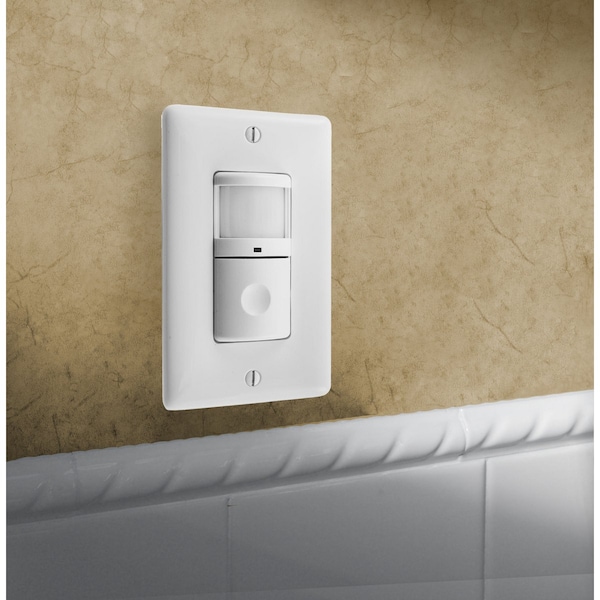

Sensor de ocupación, PIR, 1200 pies cuadrados, marfil
| Item - Motion Sensing and Dimming | Vacancy Sensor with Nightlight |
|---|---|
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared (PIR) |
| Installation Location - Motion Sensor | Wall Switch Box |
| Coverage at Suggested Mounting Height | 1,200 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120 V AC |
| Color - Motion Sensing and Dimming | White |
| Time Delay Adjustment Method - Motion Sensor | Manual |
| Time Delay - Motion Sensor | 20 sec to 30 min |
| Lighting Technology | Fluorescent, LED |
| Timer Range | 20 sec to 30 min |
| Voltage | 120VAC |
| Standards | cULus Listed to UL773A |
| Color | Ivory |
| Watts @ 120V | 500 |
| Max. Capacity @ 120VAC | 500W (Fluorescent, Incandescent, LED) |
| Time Delay | Manual |
| Installation Type | Wall |
| Includes | Night Light, Nylon Wall Plate |
| Description/Special Features | Night Light, Manual-On Operation, Tamper Resistant Lens |
| For Use With | Incandescent, LED and Fluorescent Lighting Loads |
| Coverage Angle - Motion Sensor | 180 deg |
| Viewing Angle | 180 deg |
| Suggested Mounting Height - Motion Sensor | 3 ft 6 in to 4 ft 6 in |
| Item | Vacancy Sensor with Nightlight |
| Sensor Type | Passive Infrared |
| Coverage | 1,200 sq ft |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Communication Method | Hard Wired |
| Number of Gangs | 1 |
| Wall Plate | Included |
| Dimming Method | No Dimming |
| Sensor Operation | Vacancy |
| Maximum Mounting Height | 54 in |
| Minimum Operating Temperature | 32 Degrees F |
| Time Delay Adjustment Method | Manual |
| Overall Depth | 4.15 in |
| Neutral Required | No |
| Load Rating @ 120V AC | 600W (Incandescent) |
| Includes Wall Plate | Wall Plate Included |
| Maximum Time Delay | 30 min |
| Fan Rated | No |
| Illuminated | Yes |
| Dimming Type | No Dimming |
| Includes Motion Sensor | Yes |
| Series | H-Moss |
| Installation Location | Wall |
| Coverage Angle | 180 Degrees |
| Overall Height | 1.62 in |
| Maximum Coverage Area | 1,200 sq ft |
| Horsepower Rating | 0.1875 HP |
| Minimum Time Delay | 20 sec |
| Manufacturer Warranty | 5 yr |
| Nightlight | Yes |
| Maximum Operating Temperature | 122 deg F |
| Overall Width | 1.82 in |
| Includes Dimming Switch | Dimming Switch Not Included |
| Number of Buttons | 1 |
| Minimum Mounting Height | 42 in |
| Compatible with Series | Not Applicable |
| Load Rating @ 277V AC | 1,000W (Incandescent) |
| Snap-On Wallplate | RCW1I |
| Lens | Polyethylene |
| Load Capacity | Incandescent - 0 to 1000 watts, 120V; Ballast - 0 to 1000 watts, 277V; Horsepower rating 1/6 |
| Mounting Strap | Steel |
| Mounting Height | 42 to 54 inches above floor |
| Housing | Flame retardant UL 94 V-0 ABS |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour |
| Front Press Switch | ON/OFF |
| Service Switch | OFF, ON |
| Storage | -40°F to 150°F (-40°C to 65°C); 20% to 90% non condensing relative humidity |
| SS Wallplate | SS26 |
| Passive Infrared | Red LED |
| Dimensions | Face 2.59"H x 1.30"W, 0.61"D (from wall out) |
| Package Quantity | 1 |
