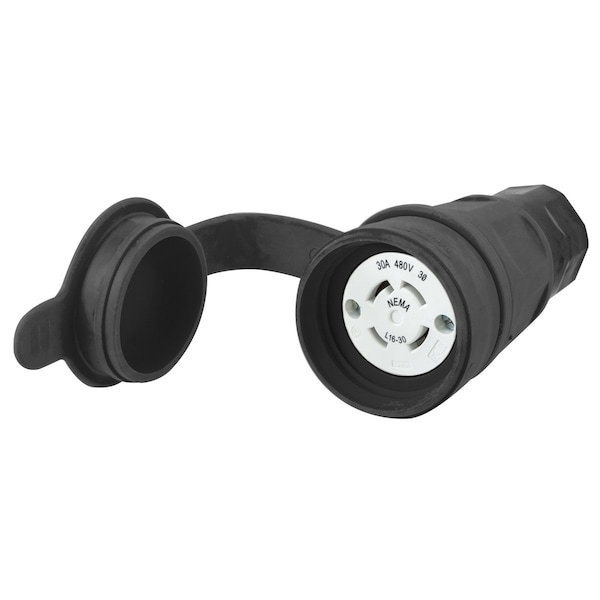

Dispositivos a prueba de agua, conector Twist-Lock®, 30A, 3 fases 480V CA, 3 polos, 4 cables, elastómero termoplástico, NEMA L16-30R, negro.
| Item - Plugs and Receptacles | 30A Watertight Twist-Lock® Connector |
|---|---|
| Amps | 30 |
| Voltage | Phase 480 VAC |
| Color - Plugs and Receptacles | Black |
| Color | Black |
| Standards | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Type | Connector Body |
| Nema Rating | L16-30R |
| Number Of Wires | 4-Wire |
| Number Of Poles | 3-Pole |
| Height | 5.67 in |
| Wire Size | Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S |
| Dimensions | 2.77 in x 2.77 in x 5.67 in |
| Voltage Rating Description | 3 Phase 480 VAC |
| Width | 2.77 in |
| Length | 2.77 in |
| Current / Amperage Rating | 30 A |
| Amperage Rating | 30 A |
| Performance | Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4) |
| Item Type | 30A Watertight Twist Lock, ® Connector |
| Industry Standard(s) | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Package Quantity | 1 |
