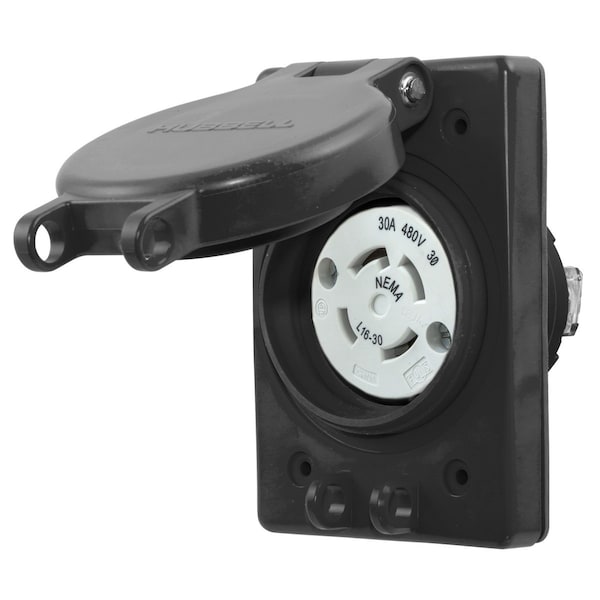

Watertight Devices, Twist-Lock Receptacle with Lift Cover, 30A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-30R, Black
| Type | Receptacle |
|---|---|
| Voltage Rating | 3 Phase 480 VAC |
| Color | Black |
| Length | 4.56 in |
| Width | 3.1 in |
| Height | 2.92 in |
| Number Of Poles | 3-Pole |
| Voltage Rating Description | 3 Phase 480 VAC |
| Number Of Wires | 4-Wire |
| Item Type | 30A Watertight Twist-Lock® Receptacle |
| Wire Size | #18 AWG to #8 AWG |
| Current / Amperage Rating | 30 A |
| Nema Rating | L16-30R |
| Amperage Rating | 30 A |
| Industry Standard(s) | IP69K In Use Meets NEMA WD-1, WD-6 And ANSI Standards |
| Dimensions | 4.56 in x 3.10 in x 2.92 in |
| Performance | Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous |
| Package Quantity | 1 |
