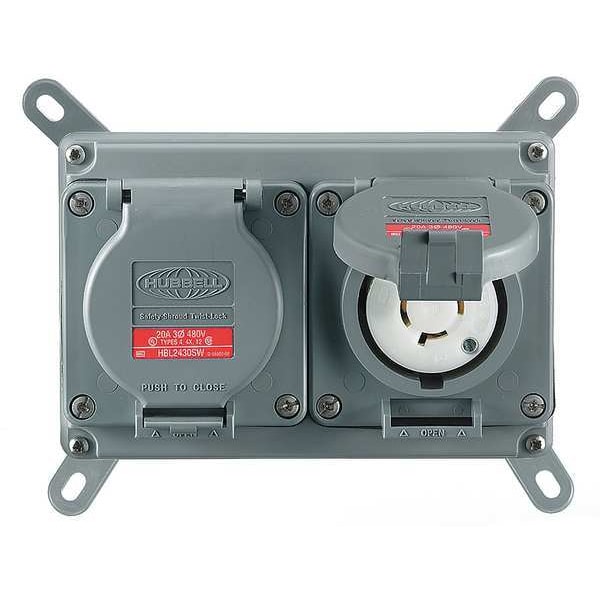

Contacto doble hermético, modelo L16-20R, 20 A, 480V AC, trifásico, 3 polos, montaje empotrado de alta calidad.
| Item | Watertight Duplex Receptacle |
|---|---|
| NEMA Receptacle Configuration | L16-20R |
| Current Rating | 20 A |
| Voltage Rating | 480V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wire Connection Type | Screw Terminals |
| Shrouded | Yes |
| Housing Color | Gray |
| Mount Type | Flush |
| Cover Type | No Cover |
| IP Rating | IP66 |
| NEMA Enclosure Rating | 4X |
| Standards | cULus Listed, UL Listed |
| Resistance Properties | Impact Resistant, Watertight |
| Flange Type | Flanged |
| Shrouded / Non-Shrouded | Shrouded |
| Material | Nylon |
| Mounting Type | Flush Mount |
| Wiring Style | Standard |
| Grade | Industrial |
| Special Features | Conduit Feed |
| Number of Gangs | 2 |
| Polarized | Yes |
| AFCI | No |
| Connection Orientation | Straight |
| Market | Industrial |
| Flange Shape | Rectangular |
| Housing Material | Nylon |
| NEMA Rating | 4x |
| Color | Gray |
| Voltage | 480V AC |
| Amps | 20 |
| NEMA Configuration | L16-20 |
| Package Quantity | 1 |
