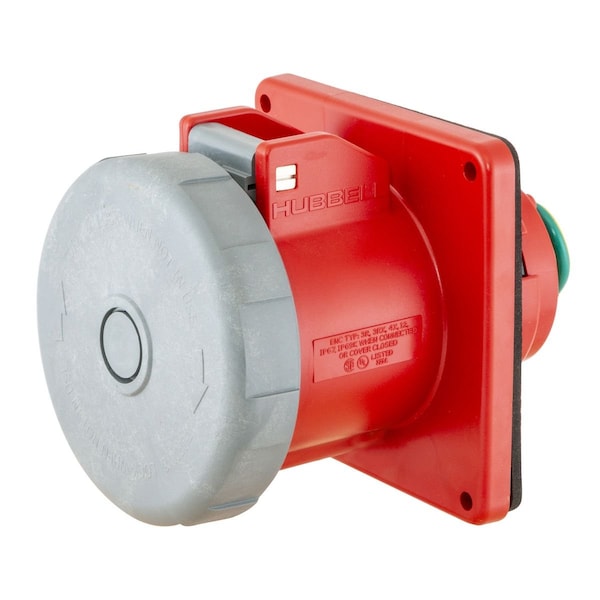

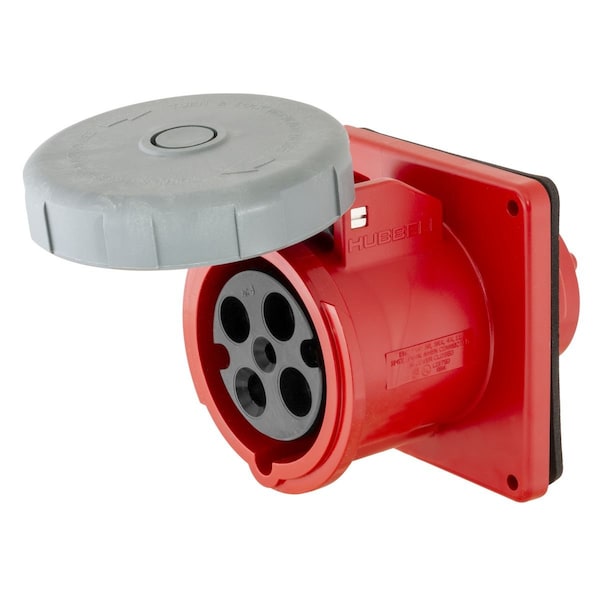

Watertight IEC Pin and Sleeve Receptacle, 3P4W, 32A 380-480V
| Item | Receptacle |
|---|---|
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Type | Receptacle |
| Voltage | 380/440V |
| Amps - Plugs and Receptacles | 32 A |
| Color - Plugs and Receptacles | Red |
| Receptacle Type | IEC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Grounding Style | IEC |
| Standards | UL Listed, File E146032, E146033, UL1682 and UL1686C2, CSA Certified LR280C, LR285C, CSA C22.2 No. 182.1, UL IEC60309-1, IEC, CSA C22.2 No.0.17 |
| Wire Size | 12 to 8 AWG |
| IP Rating | IP67 |
| Operating Temp. Range | -40 to 75° C |
| Package Quantity | 1 |
