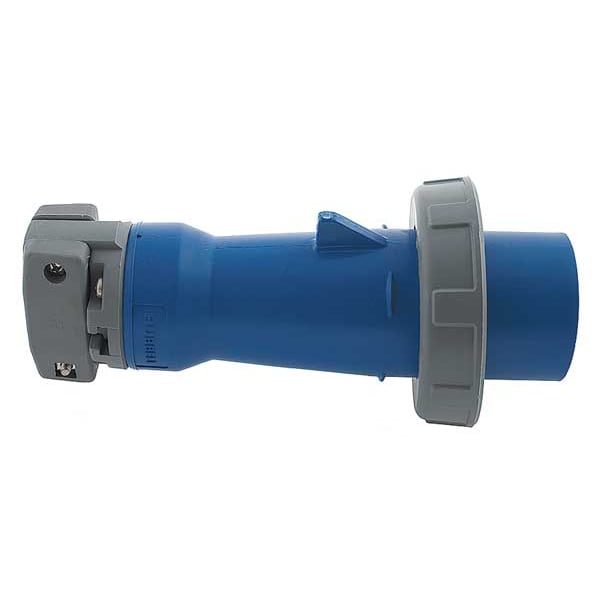

Este clavija y enchufe a prueba de agua de 100 A y 250V AC es ideal para aplicaciones industriales y exteriores. Con puesta a tierra IEC y certificación NEMA 4X, garantiza una conexión segura y confiable en entornos exigentes.
| Item | Watertight Pin & Sleeve Plug |
|---|---|
| Current Rating | 100 A |
| Voltage Rating | 250V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| IP Rating | IP67 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Terminals |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | IEC |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| For Maximum Cable Diameter | 1.94 in |
| For Minimum Cable Diameter | 1.065 in |
| Standards | CSA Certified C22.2 No. 182.1, IEC 60309-1, UL E146032 |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
| Color - Plugs and Receptacles | Blue |
| Body Material | Zytel 801 Nylon |
| Color | Blue |
| Features | Gasketed Sealing Ring Provides Watertight Seal |
| Amps - Plugs and Receptacles | 100 |
| Voltage | 250VAC |
| Body Material - Pin and Sleeve | Zytel 801 Nylon |
| Amps | 100 |
| Phase - Electrical | 1 |
| Voltage - Plugs and Receptacles | 250V AC |
| HP | 15 HP |
| Overall Length | 12.63 in |
| Maximum Operating Temperature | 75 deg C |
| Grounding | Grounded |
| Minimum Operating Temperature | -40 deg C |
| Maximum Wire Size | 1/0 AWG |
| Shrouded | Yes |
| Reverse Service | No |
| UL 94 Flammability Rating | HB |
| Power Indicating Light | No |
| Face Diameter | 3.44 in |
| Horsepower Rating | 15 HP |
| Housing Material | Non-Metallic |
| Minimum Wire Size | 3 AWG |
| Hub Style | Standard |
| Package Quantity | 1 |
