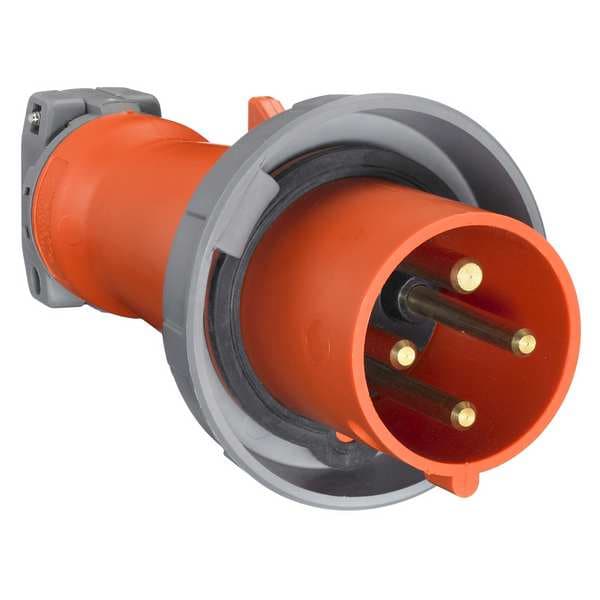

Este enchufe y clavija estancos de 20 A y 125/250V AC, monofásicos y con 3 polos, proporcionan una conexión segura en ambientes exigentes. Con certificación NEMA 4X, son ideales para aplicaciones en exteriores, industriales o donde se requiera resistencia al agua y al polvo.
| Item | Watertight Pin & Sleeve Plug |
|---|---|
| Current Rating | 20 A |
| Voltage Rating | 125/250V AC |
| Phase | Single |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP67 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Terminals |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | IEC |
| Housing Color | Orange |
| Cap Type | No Cap or Cover |
| For Maximum Cable Diameter | 0.83 in |
| For Minimum Cable Diameter | 0.33 in |
| Standards | CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1 |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Color | Orange |
| Voltage | 125/250VAC |
| Color - Plugs and Receptacles | Orange |
| Body Material - Pin and Sleeve | Zytel 801 Nylon |
| Body Material | Zytel 801 Nylon |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Amps | 20 |
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
| Amps - Plugs and Receptacles | 20 |
| Phase - Electrical | 1 |
| Features | Gasketed Sealing Ring Provides Watertight Seal |
| Overall Length | 7.01 in |
| Housing Material | Non-Metallic |
| Horsepower Rating | 2 HP |
| Maximum Wire Size | 10 AWG |
| Power Indicating Light | No |
| Maximum Operating Temperature | 75 deg C |
| Shrouded | Yes |
| Minimum Operating Temperature | -40 deg C |
| Minimum Wire Size | 14 AWG |
| Grounding | Grounded |
| UL 94 Flammability Rating | HB |
| Reverse Service | No |
| Hub Style | Standard |
| Package Quantity | 1 |
