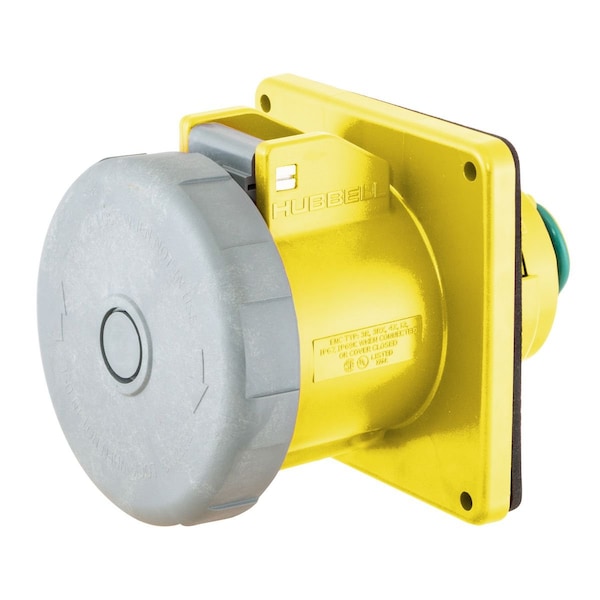

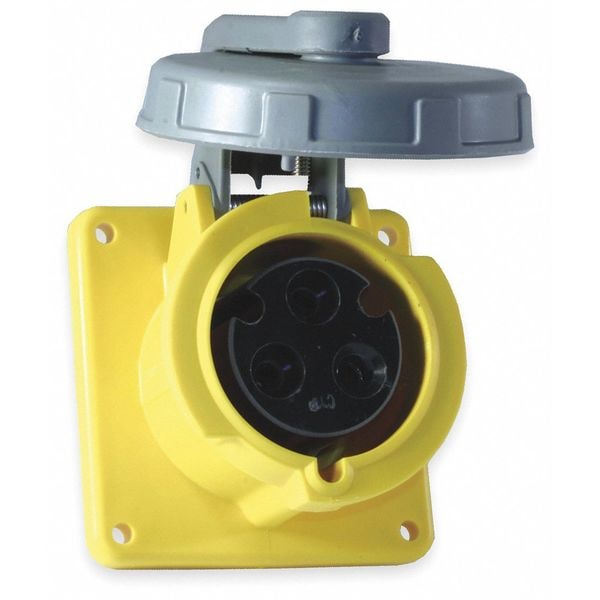

El receptáculo estanco de clavija y enchufe de 60 A y 125V AC de fase única con conexión a tierra IEC y clasificación NEMA 4X es ideal para aplicaciones industriales y comerciales donde se requiere un alto nivel de protección contra el polvo, la humedad y la corrosión.
| Item | Watertight Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| IP Rating | IP67 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Switch Rated | No |
| Grounding Style | IEC |
| Housing Color | Yellow |
| Cap Type | Spring-Loaded Cap |
| Standards | CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94 |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Voltage | 125VAC |
| Phase - Electrical | 1 |
| Item - Plugs and Receptacles | Receptacle |
| Color - Plugs and Receptacles | Yellow |
| Amps - Plugs and Receptacles | 60 |
| Voltage - Plugs and Receptacles | 125V AC |
| Amps | 60 |
| Color | Yellow |
| Features | Color Coded |
| Body Material | Zytel 101 Nylon |
| Body Material - Pin and Sleeve | Zytel 101 Nylon |
| Number of Gangs | 1 |
| Reverse Service | No |
| Face Diameter | 4.15 in |
| Maximum Operating Temperature | 75 deg C |
| Market | Industrial |
| Minimum Operating Temperature | -40 deg C |
| Maximum Wire Size | 2 AWG |
| Housing Material Grade | Zytel 101 |
| Shrouded | Yes |
| Grounding | Grounded |
| Housing Material | Thermoplastic |
| Power Indicating Light | No |
| Connection Orientation | Straight |
| Minimum Wire Size | 8 AWG |
| UL 94 Flammability Rating | HB |
| Horsepower Rating | 2 HP |
| Weight | 2.3 lb |
| Gasket Material | Neoprene |
| Cord Size | 8 to 2 AWG |
| Service | Standard |
| Retainer Material | High-Impact Thermoset |
| Product Type | Device |
| Flange Material | Zytel 101 Nylon |
| Temp. Rise | 30°C |
| Dielectric Strength | 3000V AC |
| Screw Material | 300 Stainless Steel |
| Flammability | UL 94 HB or Better |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
