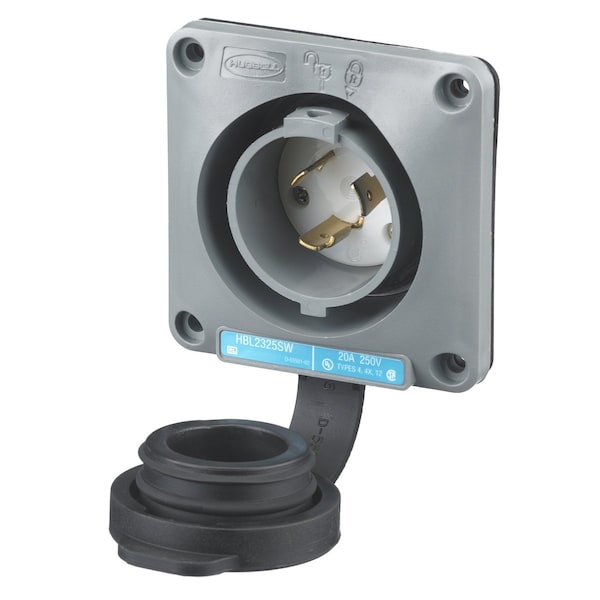

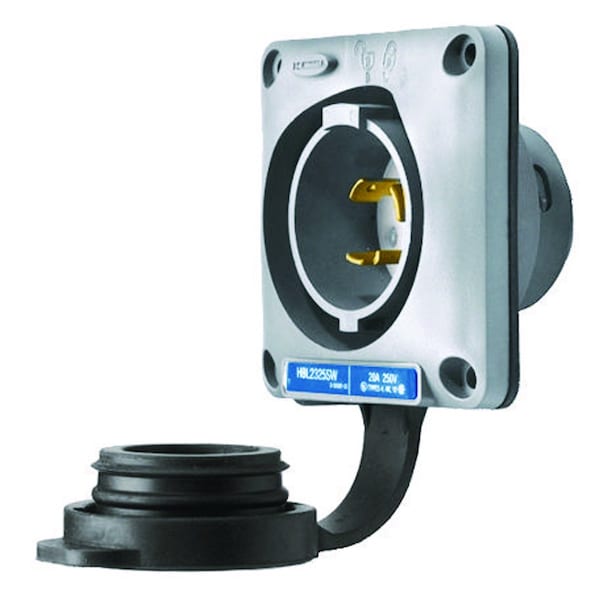

Watertight Safety-Shroud Flanged Inlet
| Number of Poles | 2 |
|---|---|
| Item | Flanged Inlet |
| NEMA Rating | 4, 4X, 12 |
| IP Rating | IP66 |
| Amps | 20 |
| Color | Gray |
| Voltage | 250V AC |
| Standards | FED SPEC UL/CSA, UL 498 |
| Number of Wires | 3 |
| Cord Size | 16 to 8 AWG |
| NEMA Configuration | L6-20P |
| Contact Material | Brass |
| Dielectric Strength | 2,000 V |
| Screw Material | Stainless Steel |
| Flammability | UL 94 V0 |
| Temp. Rise | 30°C |
| Weight | 0.6 lb |
| Housing Material | Valox |
| Product Type | Shrouded Watertight |
| Retainer Material | Clear Polycarbonate |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
