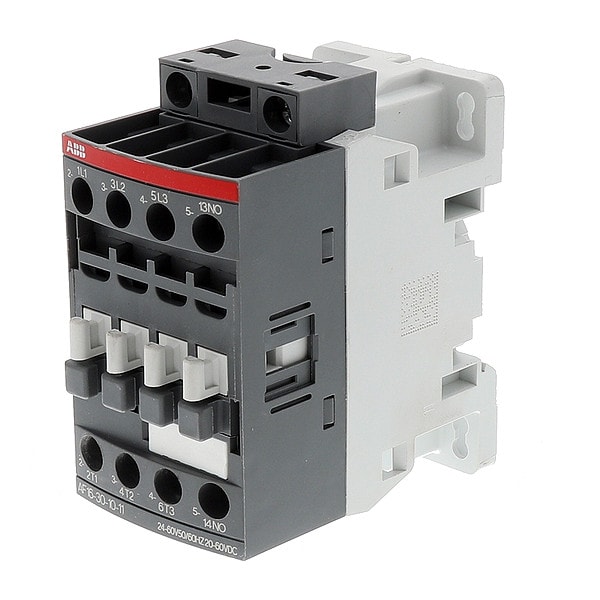

Contacto, (3) polos, 3.39 pulgadas de alto, 3.03 pulgadas de ancho.
| Item | 24V 7.5KW CONTACTOR |
|---|---|
| Number of Poles | 3 |
| Series | AF Contactors |
| Standards | DNV Certificate, EAC Certificate, GOST Certificate, KC Certificate, LR Certificate, RINA Certificate, RMRS Certificate, UL Certificate, UL Listing Card, UL-CA-2142658-5 |
| IP Rating | IP20 |
| Embedded Surge Suppressor | Yes |
| Horsepower @ Single Phase - 120V AC | 1.5 HP |
| Number of Normally Closed Main Contacts | 0 |
| Number of Auxillary Contacts | 1 |
| Overall Width | 3.03 in |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Terminal Connection Type | Screw Terminals |
| Auxiliary Contact Form | 1NO |
| Horsepower @ Three Phase - 208V AC | 5 HP |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Three Phase - 240V AC | 5 HP |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Maximum Voltage Rating | 690 V AC |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 600V AC | 15 HP |
| Number of Normally Open Main Contacts | 3 |
| Overall Depth | 1.77 in |
| Phase | Three |
| Overall Height | 3.39 in |
| Includes Auxiliary Contacts | Yes |
| Mounting Style | DIN Rail |
| Maximum Operating Temperature | 158 deg F |
| NEMA Enclosure Rating | No Enclosure |
| Auxiliary Contact Module Capacity | 1 |
| Coil Voltage | 24v AC |
| Frame Size | Not Applicable |
| Reversing Capability | Not Applicable |
| Full Load Current - Resistive | Not Applicable |
| Full Load Current - Inductive | 30 A |
| Package Quantity | 1 |
