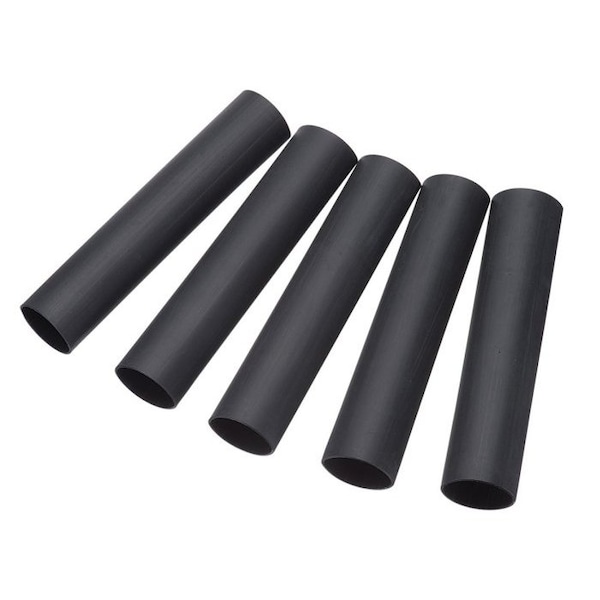

Adhesive Lined Heat Shrink Tube, Heavy Wall, 3:1 I.D. Shrink Ratio, 1.5 in I.D. Before Shrinking
| Item | Adhesive Lined Heat Shrink Tube |
|---|---|
| Shrink Ratio | 3:1 |
| Wall Type | Heavy Wall |
| Shrink Tubing I.D. After Shrinking | 0.47 in |
| Material | Cross-Linked Polyolefin |
| Color | Black |
| Length | 12 in |
| Use with Wire Size | 2/0 to 350 MCM |
| Temp. Range | -55° to 110°F |
| Min. Shrink Temp. | 248°F |
| Min. Temp. Rating | -55 deg F |
| Features | Flame Retardant |
| Flame Retardant | Yes |
| Shrink Tubing Wall Thickness After Shrinking | 0.16 in |
| Shrink Tubing Properties | Solvent Resistant, UV Light Resistant |
| Max. Voltage | 600 V |
| Max. Temp. Rating | 110 deg F |
| Package Style | Individual Pieces |
| Tubing Wall Type | Heavy Wall |
| Standards | ANSI C119.1, C37.20.2, CSA C22.2 No. 198.2, ICEA S-19-8, IEEE 383 Vertical Flame Test, MIL-DTL-23053/15, UL 486D, Western Underground Guides Nos. 2.4, 2.5 |
| Wall Thickness After Shrinking | 0.16 in |
| Adhesive Lined | Yes |
| Shrink Tubing I.D. Before Shrinking | 1-1/2 in |
| Dielectric Strength | 600 V |
| I.D. Before Shrinking | 1-1/2 in |
| I.D. After Shrinking | 0.47 in |
| Package Quantity | 10 |
