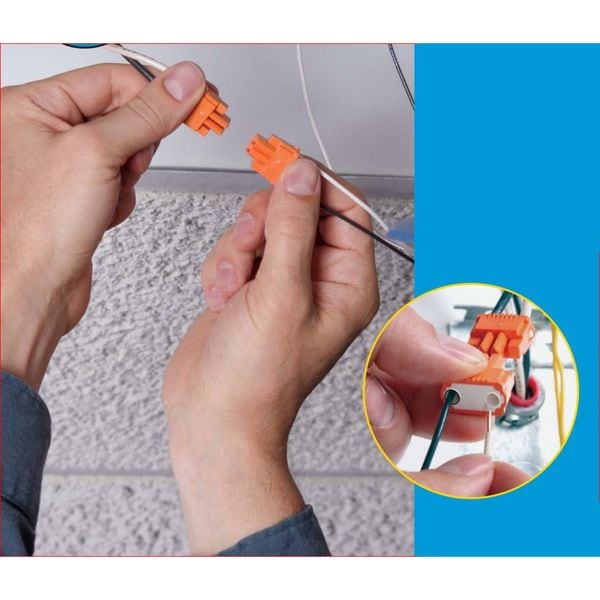

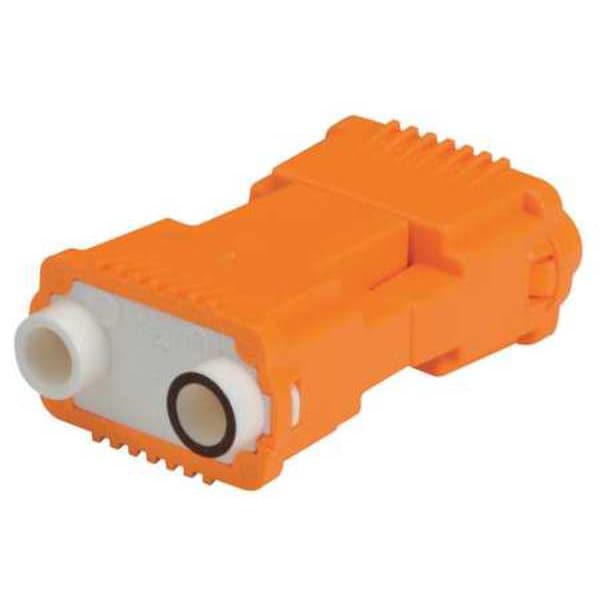

Ballast Disconnect, 2 Ports, 1.40", PK1000
| Item | Ballast Disconnect |
|---|---|
| Wire Size | 18 to 12 AWG |
| Color | Orange |
| Insulation Color | Orange |
| Connection Type | Push-In |
| Insulation Type | Nylon |
| Overall Length | 1.4 in |
| Number of Ports | 2 |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Male/Female | Male/Female |
| Application | New Installation, OEM, Retrofit |
| Standards | CSA- C22.2 NO. 2459-08, UL2459 |
| Connection Material | Copper Alloy |
| Special Features | Fits Through 1/2 in Knockout |
| For Ballast Side Solid Wire Size - Minimum | 18 AWG |
| Compatible with Series | 102 |
| Maximum Current | 6 A |
| For Conductor Material | Copper |
| Insulation Material | Nylon |
| For Line Side Solid Wire Size - Maximum | 12 AWG |
| Maximum Voltage | 600 V |
| Contact Material | Copper Alloy |
| Number of Ports - Line Side | 2 |
| RoHS Compliant | No |
| Contact Type | Plug to Socket, Socket to Plug |
| For Ballast Side Solid Wire Size - Maximum | 12 AWG |
| Maximum Operating Temperature | 221 deg F |
| Gender | Male/Female |
| Number of Ports - Ballast Side | 2 |
| For Line Side Solid Wire Size - Minimum | 18 AWG |
| Number of Pieces | 1,000 |
| Wire Type | Combo |
| Cable Tie Length | 24.5" |
| Package Quantity | 1000 |
