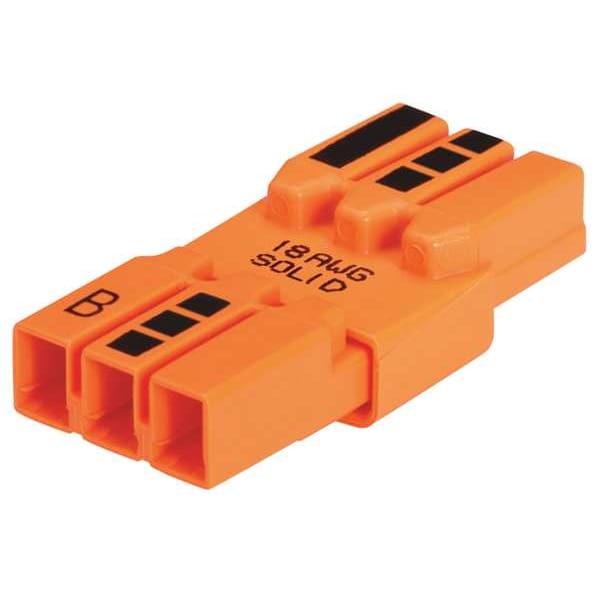

Ballast Dsconnct, 18 AWG, 1.58", Orng, PK100
| Item | Ballast Disconnect |
|---|---|
| Wire Size | 18 AWG |
| Color | Orange |
| Insulation Color | Orange |
| Insulation Type | Polycarbonate |
| Connection Type | Push-In |
| Overall Length | 1.58 in |
| Number of Ports | 3 |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Male/Female | 3 Male/3 Female |
| Standards | CEC Part I Rule 30-308(4), CSA, NEC 410.130(G), NEC 410.73(G), UL |
| Application | New Installation, OEM, Retrofit |
| Connection Material | Tin-Plated Brass |
| For Ballast Side Solid Wire Size - Maximum | 18 AWG |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Tin-Plated Brass |
| For Line Side Solid Wire Size - Maximum | 18 AWG |
| Number of Ports - Ballast Side | 3 |
| Number of Pieces | 100 |
| Compatible with Series | 183 |
| RoHS Compliant | No |
| Maximum Current | 3 A |
| UL 94 Flammability Rating | V-0 |
| For Line Side Solid Wire Size - Minimum | 18 AWG |
| Gender | 3 Male/3 Female |
| Special Features | Fits Through 1/2 in Knockout |
| For Ballast Side Solid Wire Size - Minimum | 18 AWG |
| Insulation Material | Polycarbonate |
| For Conductor Material | Copper |
| Contact Type | Plug to Socket, Socket to Plug |
| Number of Ports - Line Side | 3 |
| Maximum Voltage | 600 V |
| Wire Type | Solid |
| Cable Tie Length | 24.5" |
| Package Quantity | 100 |
