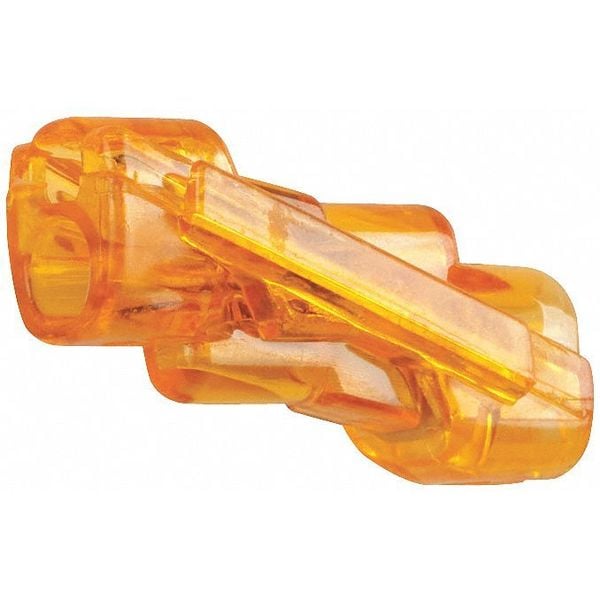

Conectores en línea, de 2 puertos, paquete de 100
| Color | Orange |
|---|---|
| Max. Voltage | 600 |
| Height | 0.41 in |
| Length | 1 in |
| Connector Type | Butt Splice |
| Wire Type | Solid or Stranded |
| Description/Special Features | Polycarbonate Housing, Solderless Butt Splice |
| Wire Range | 18 to 12 AWG Stranded, 20 to 12 AWG Solid |
| Item | In-Line Push-In Connector |
| Standards | CSA C22.2#188, UL 467, UL 486C |
| Insulation Type | Self-Insulated |
| Length (Straight Wireway) | 1 in |
| Seam Style | Seamless |
| Contact Material | Copper |
| Maximum Operating Temperature | 221 deg F |
| Minimum Wire Size | 20 AWG |
| Overall Depth | 9/16 in |
| Termination Style | Push-In |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Body Finish | Tin Plated |
| Insulation Color | Orange |
| Insulation Material | Polycarbonate |
| Special Features | Unique Design to Provide a Crimp-Free, Solderless Butt Splice Faster and Easier |
| UL 94 Flammability Rating | V-2 |
| Strip Length | 1/2 in |
| Overall Width | 0.41 in |
| Overall Length | 1 in |
| Connection Type | Push-On |
| RoHS Compliant | Yes |
| For Wire Type | Stranded, Solid |
| Maximum Wire Size | 12 AWG |
| Number of Ports | 2 |
| Package Quantity | 100 |
