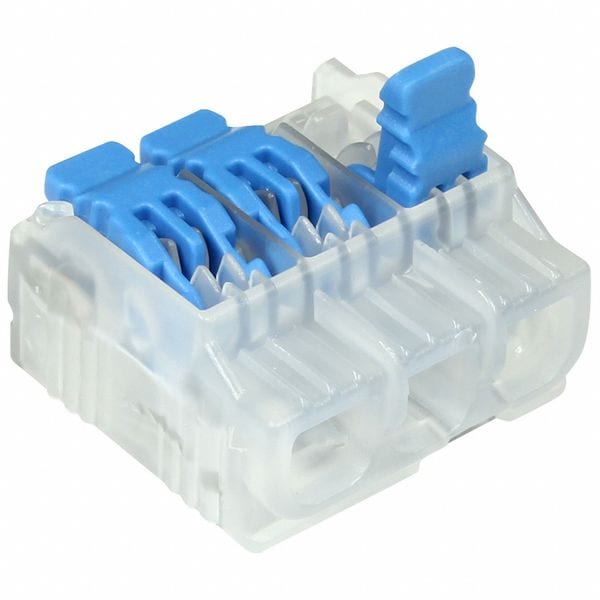

Conector de cable de palanca, azul, 0.78" de largo, paquete de 350
| Color | Blue |
|---|---|
| Item | Lever Wire Connector |
| Connector Type | 3 Port |
| Standards | CE, cUL, IEC/EN, RoHS, UL |
| Number of Ports | 3 |
| Overall Length | 0.78 in |
| Maximum Operating Temperature | 221 deg F |
| Current | 20 A |
| RoHS Compliant | Yes |
| For Conductor Material | Copper |
| Overall Height | 0.41 in |
| Housing Material | Polycarbonate |
| Maximum Voltage | 600 V |
| UL 94 Flammability Rating | V-2 |
| Strip Length | 7/16 in |
| For Minimum Wire Size - Stranded | 24 AWG |
| For Minimum Wire Size - Solid | 24 AWG |
| For Maximum Wire Size - Solid | 12 AWG |
| Contact Material | Copper |
| Overall Width | 0.77 in |
| Special Features | Two-Stage Lock for a Secure Connection |
| For Maximum Wire Size - Stranded | 12 AWG |
| Package Quantity | 350 |
