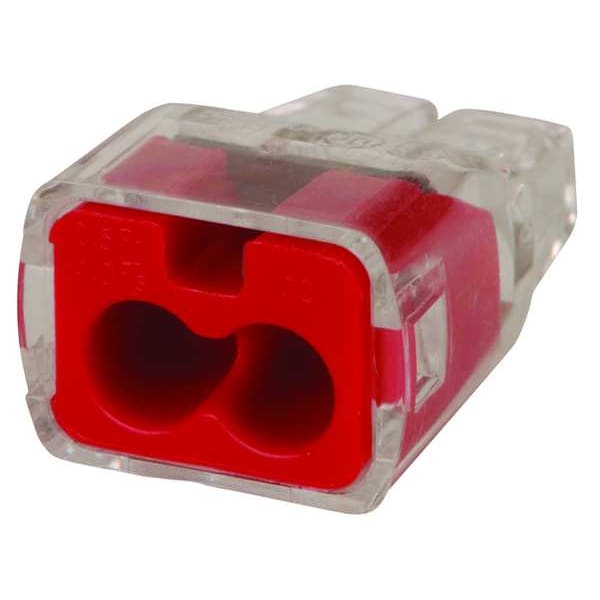

Push In Connector, 2 Port, Red, PK100
| Color | Red |
|---|---|
| Max. Voltage | 600 |
| Height | 0.38 in |
| Length | 0.78 in |
| Wire Type | Copper - solid and stranded, Stranded tin-bonded copper |
| Standards | CSA, UL |
| Description/Special Features | Polycarbonate Housing with Ergonomic Grip |
| Item | Push-In Connector |
| Wire Range | 18 to 12 AWG Stranded, 20 to 12 AWG Solid |
| Connector Type | 2 Port |
| Length (Straight Wireway) | 0.78 in |
| Overall Width | 0.52 in |
| For Minimum Wire Size - Stranded | 18 AWG |
| Overall Height | 0.38 in |
| Strip Length | 3/8 in |
| For Maximum Wire Size - Stranded | 12 AWG |
| Special Features | Approved For Bonding And Grounding Applications, Clear Shell Gives Visual Verification Of Connection, Compact Size Makes Installation Easy, Ergonomic Design For Easy Grip And Comfortable Installation, Low Insertion Force For Fast And Easy Connections |
| For Minimum Wire Size - Solid | 20 AWG |
| Overall Length | 0.78 in |
| Contact Material | Copper |
| Compatible with Product Type | Branch Circuit Wiring, Commercial Lights, Lighting Retrofit, Pre-Fab Wiring Systems, Residential Lights |
| Maximum Operating Temperature | 221 deg F |
| Number of Ports | 2 |
| UL 94 Flammability Rating | V-2 |
| For Conductor Material | Copper |
| Housing Material | Polycarbonate |
| Current | 20 A |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| RoHS Compliant | Yes |
| For Maximum Wire Size - Solid | 12 AWG |
| Cable Tie Length | 24.5" |
| Termination Method | Push-On |
| Package Quantity | 100 |
