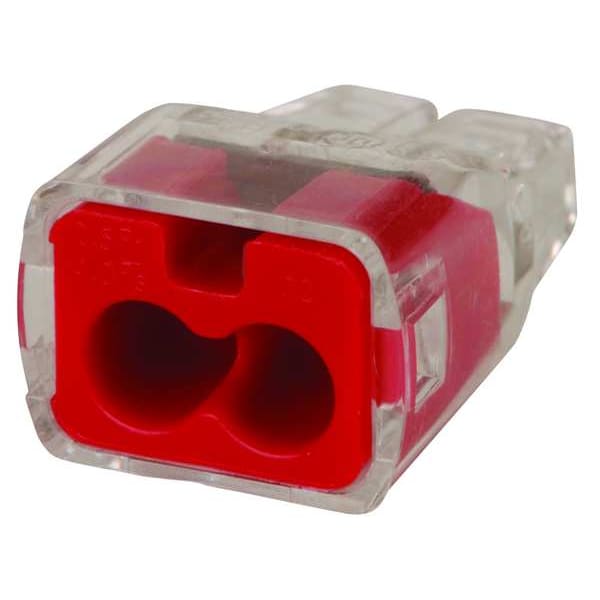

Conector de empuje, 2 puertos, rojo, paquete de 5000.
| Color | Red |
|---|---|
| Max. Voltage | 600 |
| Height | 0.38 in |
| Length | 0.78 in |
| Wire Type | Copper - solid and stranded, Stranded tin-bonded copper |
| Item | Push-In Connector |
| Description/Special Features | Polycarbonate Housing with Ergonomic Grip |
| Standards | CSA, UL |
| Wire Range | 18 to 12 AWG Stranded, 20 to 12 AWG Solid |
| Connector Type | 2 Port |
| Length (Straight Wireway) | 0.78 in |
| Current | 20 A |
| Overall Height | 0.38 in |
| Overall Width | 0.52 in |
| Overall Length | 0.78 in |
| UL 94 Flammability Rating | V-2 |
| Number of Ports | 2 |
| For Maximum Wire Size - Solid | 12 AWG |
| Maximum Operating Temperature | 221 deg F |
| For Maximum Wire Size - Stranded | 12 AWG |
| Contact Finish | Tin |
| Strip Length | 3/8 in |
| Maximum Voltage | 600 V |
| Housing Material | Polycarbonate |
| Special Features | Approved For Bonding And Grounding Applications, Clear Shell Gives Visual Verification Of Connection, Compact Size Makes Installation Easy, Ergonomic Design For Easy Grip And Comfortable Installation, Low Insertion Force For Fast And Easy Connections |
| For Minimum Wire Size - Solid | 20 AWG |
| Compatible with Product Type | Twist-On Wire Connector |
| For Minimum Wire Size - Stranded | 18 AWG |
| For Conductor Material | Copper |
| Contact Material | Copper |
| RoHS Compliant | Yes |
| Termination Method | Push-On |
| Package Quantity | 5000 |
