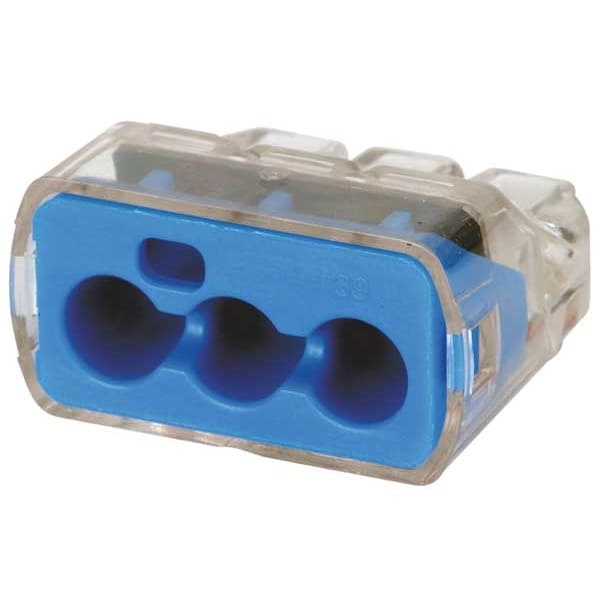

Conector Push-In de 3 puertos, azul, paquete de 150
| Color | Blue |
|---|---|
| Max. Voltage | 600 |
| Height | 0.45 in |
| Length | 0.78 in |
| Connector Type | 3 Port |
| Standards | CSA, UL |
| Wire Type | Copper - solid and stranded, Stranded tin-bonded copper |
| Wire Range | 14 to 10 AWG Solid, 14 to 10 AWG Stranded |
| Item | Push-In Connector |
| Description/Special Features | Polycarbonate Housing with Ergonomic Grip |
| Length (Straight Wireway) | 0.78 in |
| For Minimum Wire Size - Solid | 14 AWG |
| For Minimum Wire Size - Stranded | 14 AWG |
| Contact Finish | Tin |
| For Maximum Wire Size - Stranded | 10 AWG |
| For Conductor Material | Copper |
| Overall Height | 0.45 in |
| Contact Material | Copper |
| Maximum Operating Temperature | 221 deg F |
| RoHS Compliant | Yes |
| Strip Length | 3/8 in |
| Number of Ports | 3 |
| Overall Length | 0.78 in |
| Maximum Voltage | 600 V |
| Compatible with Product Type | Twist-On Wire Connector |
| Current | 30 A |
| Overall Width | 0.86 in |
| For Maximum Wire Size - Solid | 10 AWG |
| Housing Material | Polycarbonate |
| UL 94 Flammability Rating | V-2 |
| Special Features | Approved For Bonding And Grounding Applications, Clear Shell Gives Visual Verification Of Connection, Compact Size Makes Installation Easy, Ergonomic Design For Easy Grip And Comfortable Installation, Low Insertion Force For Fast And Easy Connections |
| Termination Method | Push-On |
| Package Quantity | 150 |
