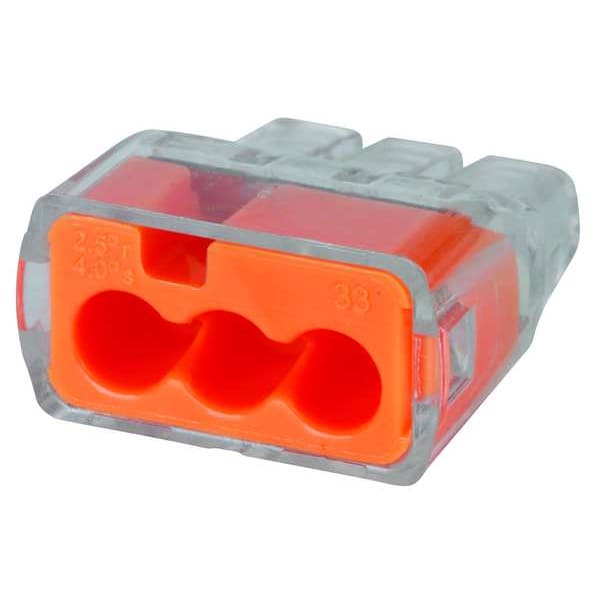

Push In Connector, 3 Port, Orange, PK100
| Color | Orange |
|---|---|
| Max. Voltage | 600 |
| Height | 0.38 in |
| Length | 0.78 in |
| Connector Type | 3 Port |
| Description/Special Features | Polycarbonate Housing with Ergonomic Grip |
| Wire Type | Copper - solid and stranded, Stranded tin-bonded copper |
| Wire Range | 18 to 12 AWG Stranded, 20 to 12 AWG Solid |
| Item | Push-In Connector |
| Standards | CSA, UL |
| Length (Straight Wireway) | 0.78 in |
| Special Features | Approved For Bonding And Grounding Applications, Clear Shell Gives Visual Verification Of Connection, Compact Size Makes Installation Easy, Ergonomic Design For Easy Grip And Comfortable Installation, Low Insertion Force For Fast And Easy Connections |
| For Maximum Wire Size - Solid | 12 AWG |
| Overall Width | 0.69 in |
| Maximum Operating Temperature | 221 deg F |
| RoHS Compliant | Yes |
| For Minimum Wire Size - Solid | 20 AWG |
| UL 94 Flammability Rating | V-2 |
| For Maximum Wire Size - Stranded | 12 AWG |
| For Conductor Material | Copper |
| Contact Finish | Tin |
| Strip Length | 3/8 in |
| For Minimum Wire Size - Stranded | 18 AWG |
| Overall Length | 0.78 in |
| Number of Ports | 3 |
| Housing Material | Polycarbonate |
| Contact Material | Copper |
| Current | 20 A |
| Compatible with Product Type | Twist-On Wire Connector |
| Overall Height | 0.38 in |
| Maximum Voltage | 600 V |
| Termination Method | Push-On |
| Package Quantity | 100 |
