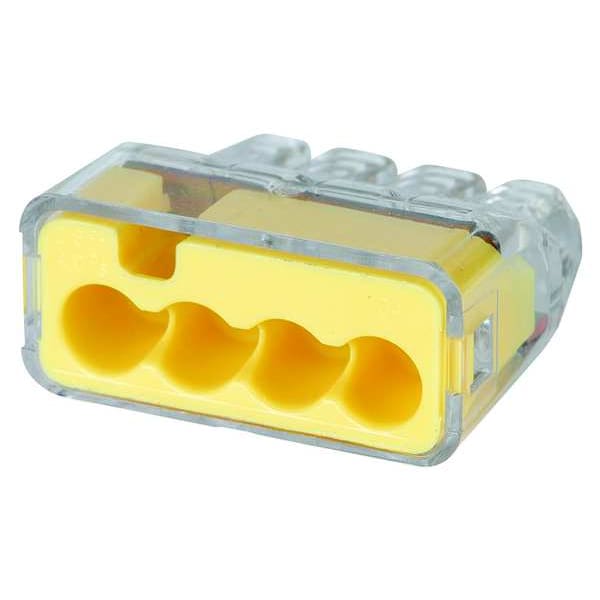

Conector de inserción, 4 puertos, amarillo, paquete de 100
| Color | Yellow |
|---|---|
| Max. Voltage | 600 |
| Height | 0.38 in |
| Length | 0.78 in |
| Wire Type | Copper - solid and stranded, Stranded tin-bonded copper |
| Description/Special Features | Polycarbonate Housing with Ergonomic Grip |
| Item | Push-In Connector |
| Wire Range | 18 to 12 AWG Stranded, 20 to 12 AWG Solid |
| Connector Type | 4 Port |
| Standards | CSA, UL |
| Length (Straight Wireway) | 0.78 in |
| Contact Material | Copper |
| For Maximum Wire Size - Solid | 12 AWG |
| For Maximum Wire Size - Stranded | 12 AWG |
| RoHS Compliant | Yes |
| Overall Height | 0.38 in |
| Current | 20 A |
| For Conductor Material | Copper |
| Strip Length | 3/8 in |
| Overall Length | 0.78 in |
| For Minimum Wire Size - Solid | 20 AWG |
| For Minimum Wire Size - Stranded | 18 AWG |
| Maximum Voltage | 600 V |
| UL 94 Flammability Rating | V-2 |
| Housing Material | Polycarbonate |
| Overall Width | 0.82 in |
| Number of Ports | 4 |
| Special Features | Approved For Bonding And Grounding Applications, Clear Shell Gives Visual Verification Of Connection, Compact Size Makes Installation Easy, Ergonomic Design For Easy Grip And Comfortable Installation, Low Insertion Force For Fast And Easy Connections |
| Compatible with Product Type | Twist-On Wire Connector |
| Maximum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| Termination Method | Push-On |
| Package Quantity | 100 |
