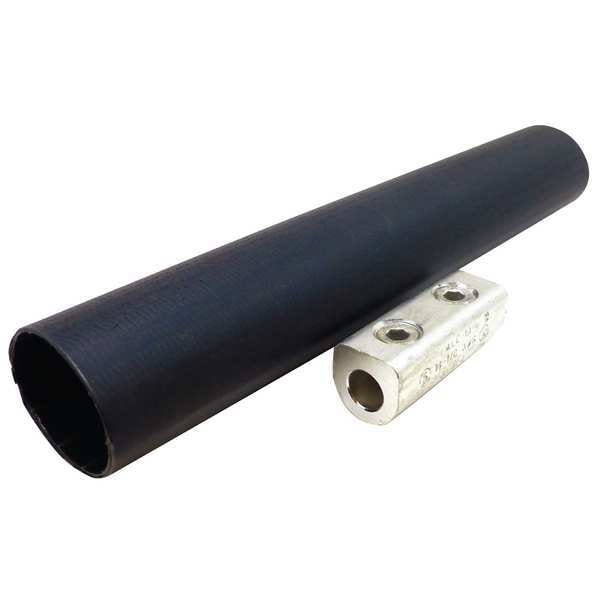

Splice Kits, 4 to 1/0 AWG, 221F, Al/Cu, Blk
| Item | Splice Kit |
|---|---|
| Wire Range | 4 to 1/0 AWG |
| Material | Aluminum/Copper Splice, TS-46 Crosslinked Polyolefin Insulation |
| Includes | Heat Shrink Tubing and Adhesive Liner |
| Temp. Range | Up to 221 Degrees F |
| Color | Black |
| Max. Voltage | 600 V |
| Overall Length | 14-1/2 in |
| Max. Temp. | 221 deg F |
| Standards | NEC Code 110-14(b) |
| Voltage Rating | 600V |
| Tubing Wall Type | Heavy Wall |
| Compatible with Product Type | Power Cables, Motor Connections, Pool Wiring |
| Maximum Voltage | 600 V |
| Heat Shrink Material | Cross-Linked Polyolefin |
| Body Material | Aluminum |
| Resin Volume | Not Applicable |
| Resin Material | Not Applicable |
| For Conductor Type | Copper, Aluminum |
| For Maximum Cable OD | 0.32 in |
| Insulation Material | Polyolefin |
| For Wire Type | Motor Lead Cable, Power Cables, Pool Wire |
| Special Features | Direct Burial Rated |
| RoHS Compliant | No |
| Contact Material | Steel |
| For Conductor Material | Copper, Aluminum |
| Resistance Properties | UV-Resistant |
| Maximum Operating Temperature | 221 deg F |
| Minimum Operating Temperature | 221 deg F |
| Maximum Wire Size | 1/0 AWG |
| Minimum Wire Size | 4 AWG |
| Termination Style | Splice |
| Package Quantity | 1 |
