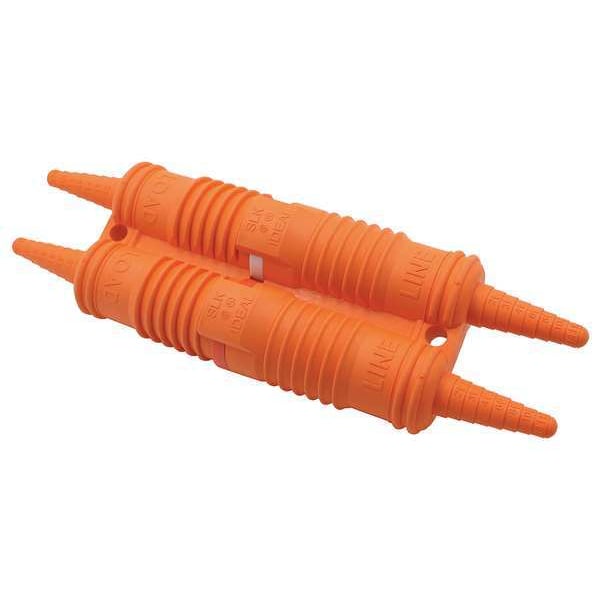

Desconector de luz DIL, de crimpado, de doble línea, emparejado.
| Style | Dual In-Line |
|---|---|
| Item | Street Light Disconnect |
| Breakaway/Non-Breakaway | Breakaway |
| Insulation | Polypropylene, TPE |
| Color | Orange |
| Primary Wire Range | 6 to 14 AWG |
| Insulation Color | Orange |
| Connection Type | Crimp |
| Wire Range | 2-14 AWG (Cu & Al rated) |
| Overall Length | 8-1/2 in |
| Design | Paired |
| Secondary Wire Range | 6 to 14 AWG |
| Max. Voltage | 600 V |
| Max. Temp. | 105 deg C |
| Secondary Connections/Pole | 1 |
| Primary Connections/Pole | 1 |
| Connection Material | Tin-Plated Brass |
| Standards | UL 486D, UL Listed |
| Compatible with Series | SLK |
| Contact Material | Brass |
| For Minimum Line Wire Size | 4 AWG |
| For Maximum Line Wire Size | 2 AWG |
| Compatible with Product Type | Street Lights |
| Maximum Voltage | 600 V |
| For Maximum Load Wire Size | 2 AWG |
| Line Inputs | 2 |
| Disconnect Breakaway | Breakaway |
| For Conductor Material | Copper, Aluminum |
| Insulation Material | Polypropylene, TPE |
| Load Outputs | 2 |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Current | 30 A |
| Disconnect Style | Breakaway Disconnect |
| Maximum Operating Temperature | 221 deg F |
| UL 94 Flammability Rating | V-2 |
| Special Features | De-Energizes Roadway Lights, Streetlights, Parking Lot Lights and Other Freestanding Electrical Fixtures in the Event of a Knockdown or When Fixtures Need Maintenance, Helps Protect First Responders, Bystanders and Service Personnel From Potentially Life-Threatening Electrical Shock Hazards |
| For Minimum Load Wire Size | 4 AWG |
| Primary Connection Poles | 1 |
| Secondary Connection Poles | 1 |
| Ratings | 30A, 600V, 105°C |
| SLK Type | Crimp |
| SLK Variation | Paired |
| Maximum Rated Voltage | 600V |
| Number of Wires (Line Side) | 2 Wire |
| Maximum Wire Gauge | 2 AWG |
| Number of Wires (Load Side) | 2 Wire |
| Length | 1,000 ft |
| Street Light Kit Type | Single-Pole In-Line Paired |
| Minimum Wire Gauge | 4 AWG |
| Package Quantity | 1 |
