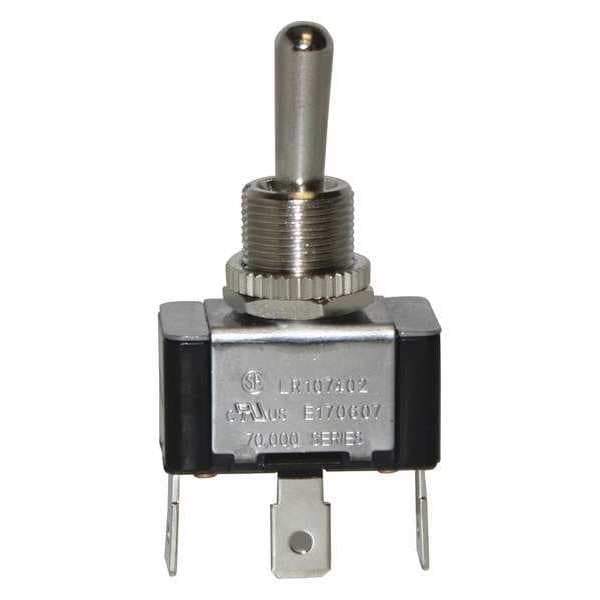

Interruptor de palanca, SPDT, 10A @ 250V, QuikConnect
| Item | Toggle Switch |
|---|---|
| Contact Form | SPDT |
| Number of Connections | 3 |
| Switch Function | ON/OFF, On |
| Terminals | Quick Connect |
| Mounting Hole | 0.50 in dia |
| AC Contact Rating | 10 A to 277 V, 20 A to 125 V |
| DC Contact Rating | 21 A @ 14.8 V |
| HP | 3/4 HP |
| Stem Length | 1/2 in |
| Special Features | Factory Tested 100,00 Cycles to 21A @ 14.8V DC |
| Actuator Length | 3/4 in |
| Stem Dia. and Thread Size | 15/32-32 NS-2B |
| Operating Temp. Range | 32 Degrees to 185 Degrees F |
| Stem Color | Silver |
| Recommended Use | Power Tool and Motor Control Switch Applications |
| Standards | CSA, UL Listed |
| Actuator Color | Silver |
| Actuator Style | Bat |
| Product Type | Toggle Switch |
| Operating Temperature | 32°F to 185°F (0°C to 85°C) |
| Mechanical Life | 100,000 cycles |
| Dielectric Strength | 1500V |
| DC Rating | Factory tested 100,000 cycles to 21 Amp 14.8 VDC |
| Horsepower | 3/4 hp |
| Mounting Hole Diameter | 1/2 in |
| Operating Temperature - Maximum | 185 deg F |
| Stem Thread Size | 15/32-32 NS-2A |
| Number of Poles | 1 |
| Switch Function Configuration | On/Off, On |
| Operating Temperature - Minimum | 32 deg F |
| Terminal Connection Type | Terminals |
| Metal Actuator Finish | Nickel |
| Number of Positions | 3 |
| Actuator Material | Metal |
| Overall Height | 0.61 in |
| Overall Depth | 1.13 in |
| Overall Width | 0.57 in |
| Package Quantity | 1 |
