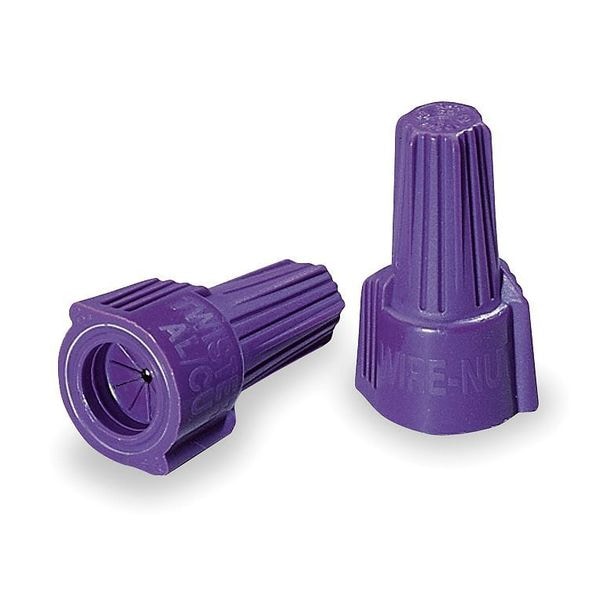

Twist On Wire Connector, 12-10 AWG, PK25
| Color | Purple |
|---|---|
| Min. Single Wire Size | 12 AWG |
| Max. Single Wire Size | 10 AWG |
| Series | 65 |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (1) 12 AWG Solid with (1) 18 AWG |
| Max. Wire Combination | (1) 10 AWG |
| Height | 1.69 in |
| Width | 0.81 in |
| Application | Aluminum to Copper |
| Standards | CSA Certified, UL Listed |
| Item | Twist On Wire Connector |
| Connector Type | 65 |
| Max. Temp. | 221 deg F |
| Maximum Voltage | 600 V |
| Contact Material | Steel |
| Strip Length | 1/2 in |
| Minimum Wire Combination | (1) 18 AWG |
| Maximum Wire Combination | (1) 10 AWG |
| Overall Width | 0.81 in |
| Special Features | Pre-Filled Antioxidant Compound Prevents Oxidation of Aluminum Conductors, Swept Wings and Hexagonal Head for Easy Installation by Hand or With Standard Nut Driver |
| For Conductor Material | Copper, Aluminum |
| Maximum Single Wire Size | 10 AWG |
| Insulation Material | Polypropylene |
| UL 94 Flammability Rating | V-2 |
| Overall Height | 1.69 in |
| Maximum Operating Temperature | 221 deg F |
| Maximum Conductors | 2 |
| Minimum Single Wire Size | 18 AWG |
| RoHS Compliant | Yes |
| Maximum Rated Voltage | 600V |
| Maximum Wire Gauge | 10 AWG |
| Minimum Wire Gauge | 18 AWG |
| Twist-On Style | Wing |
| Usage | Indoor |
| Package Quantity | 25 |
