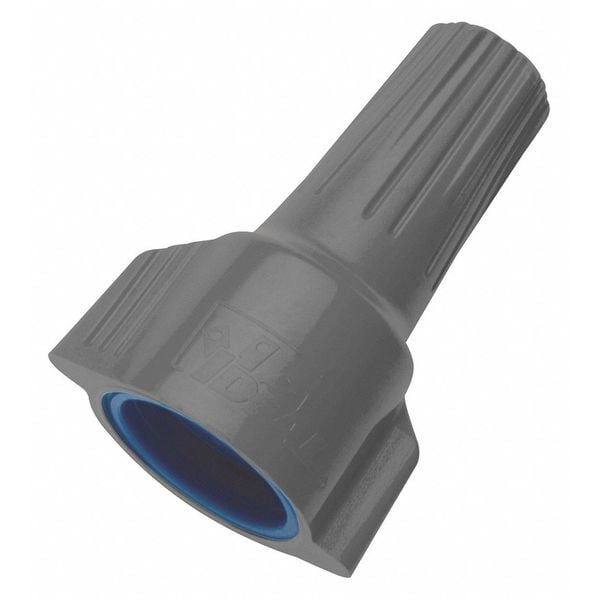

Twist On Wire Connector, 16-6 AWG, PK50
| Color | Blue/Gray |
|---|---|
| Min. Single Wire Size | 16 AWG |
| Max. Single Wire Size | 6 AWG |
| Series | 63 |
| Max. Voltage | 600 V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (3) 14 AWG |
| Max. Wire Combination | (2) 8 AWG and (1) 10 AWG |
| Height | 1.59 in |
| Width | 1.06 in |
| Application | Wide Range |
| Item | Twist On Wire Connector |
| Standards | CE, CSA Certified, UL Listed |
| Connector Type | 63 |
| Max. Temp. | 221 deg F |
| Minimum Wire Combination | (3) 14 AWG |
| UL 94 Flammability Rating | V-2 |
| Maximum Operating Temperature | 221 deg F |
| Maximum Wire Combination | (5) 10 AWG |
| Overall Width | 1.06 in |
| Minimum Single Wire Size | 16 AWG |
| Insulation Material | Polyester |
| Maximum Conductors | 6 |
| Overall Height | 1.59 in |
| For Conductor Material | Copper |
| Special Features | Easy to Apply, Pre-Filled Twist-on Wire Connectors, Eliminates the Need for Heat-Shrink or Excessive Taping, Swept Wing Design is Built for Comfort and Efficiency |
| Maximum Single Wire Size | 6 AWG |
| Fill Material | Silicone |
| Maximum Voltage | 600 V |
| Contact Material | Steel |
| Maximum Wire Gauge | 6 AWG |
| Minimum Wire Gauge | 16 AWG |
| Maximum Rated Voltage | 600V |
| Termination Method | Twist-On |
| Twist-On Style | Wing |
| Package Quantity | 50 |
